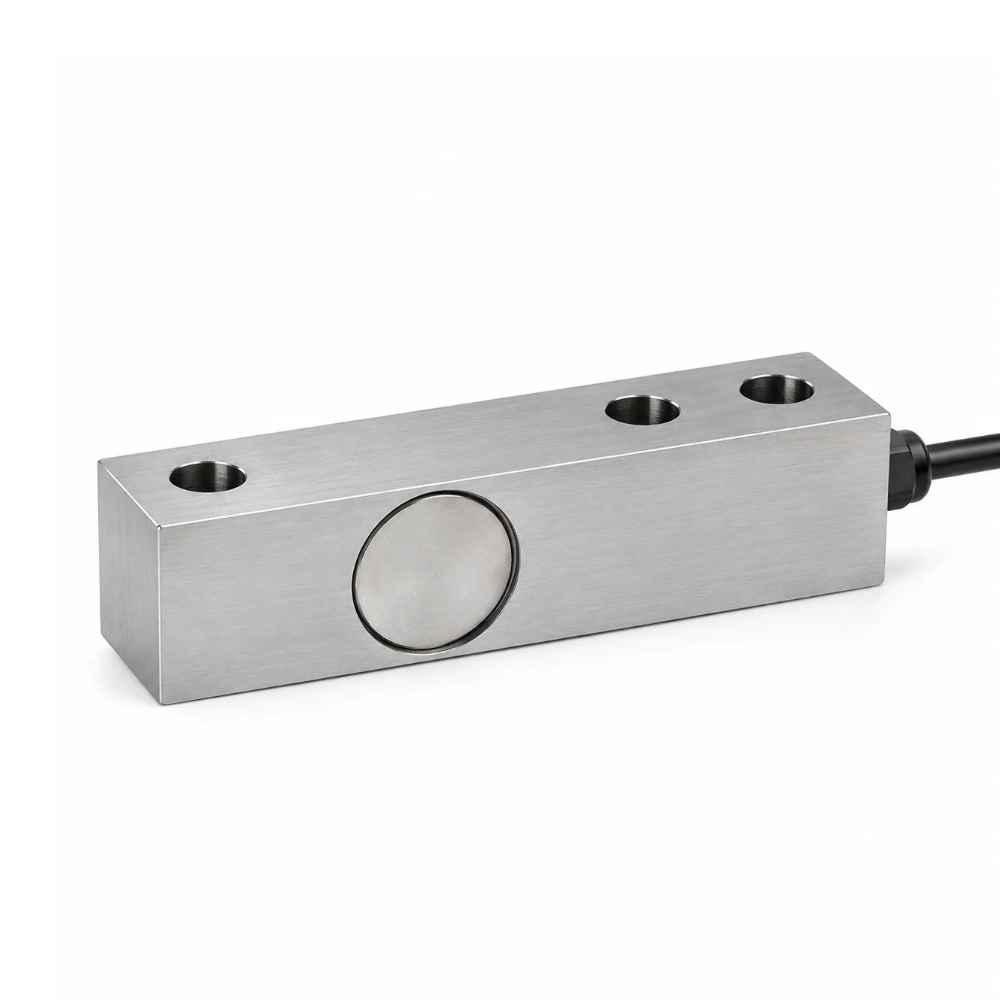

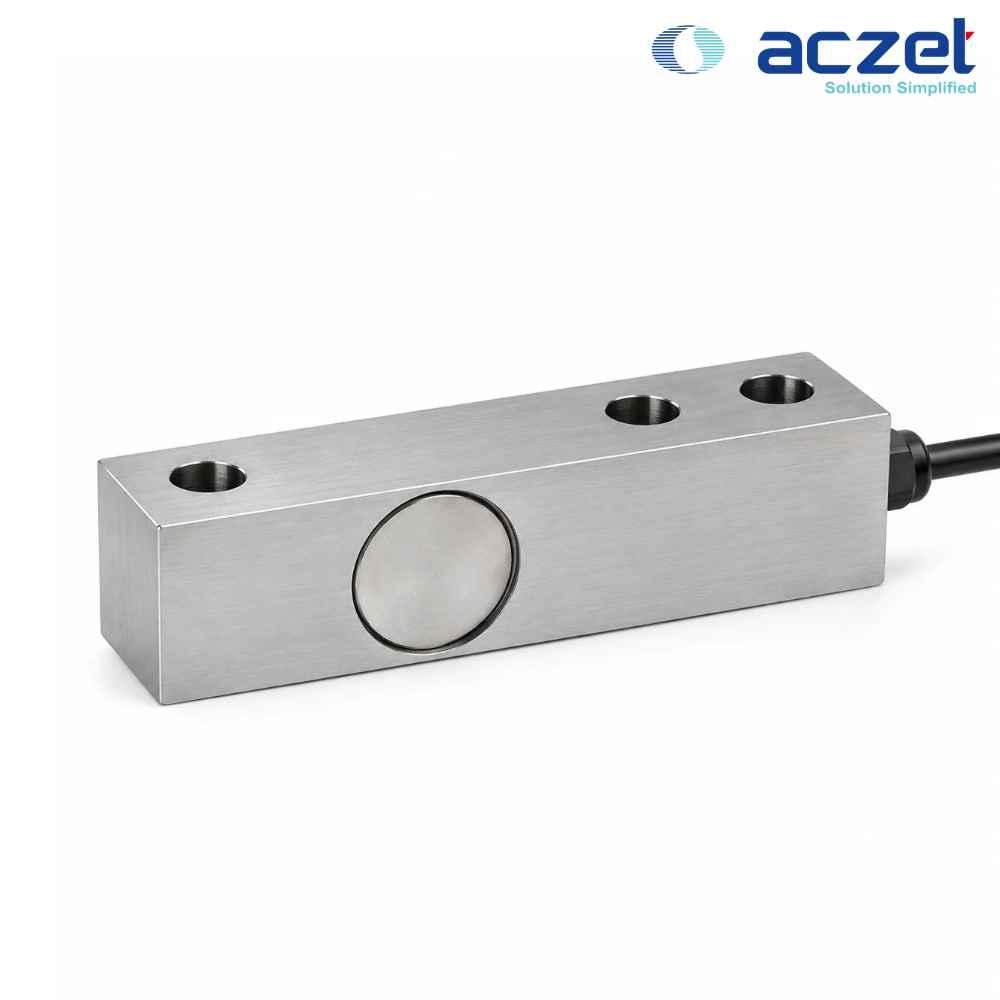

Single-Ended Shear Beam Load Cell: The Reliable Workhorse for Platform and Tank Weighing
In the world of industrial weighing, where accuracy and durability are constantly tested by vibration, side loads, and harsh environments, one load cell type has earned its reputation as the dependable workhorse: the single-ended shear beam load cell. It is the sensor of choice for countless platform scales, tank weighing systems, hopper scales, and conveyor weigh stations across India and around the world.
At UP Scales, we supply single-ended shear beam load cells engineered for accuracy, stability, and long-term reliability. Available in capacities from 500 kg up to 10 Ton, these load cells are the ideal solution for businesses building or repairing platform scales, tank weighing systems, and industrial batching equipment. Whether you are weighing a pallet in a warehouse or monitoring the contents of a chemical storage tank, our shear beam load cells deliver the performance your operation demands.
What is a Single-Ended Shear Beam Load Cell?
A single-ended shear beam load cell is a precision force sensor that operates on the cantilever principle—similar to a diving board. One end of the load cell is rigidly bolted to a fixed support, while the load is applied to the opposite free end. This simple yet robust configuration makes it ideal for a wide range of industrial weighing applications.
Unlike single point load cells that are designed for off-center loading on a small platform, single-ended shear beam load cells are typically used in multiple-cell configurations—two, three, or four load cells working together to support a larger platform or vessel . Each load cell measures a portion of the total weight, and the signals are summed to provide an accurate total.
How Does a Single-Ended Shear Beam Load Cell Work?
The operating principle is based on shear strain measurement, a technology that offers distinct advantages over traditional bending beam designs.
Inside the load cell body, there is a precisely machined I-beam or web structure. When a load is applied to the free end, the beam experiences both bending and shear forces. The shear strain concentrates along the neutral axis of the beam—the horizontal mid-plane where bending strain crosses through zero.
Strain gauges are bonded to the web surface at 45-degree angles relative to the beam length. This orientation aligns the gauges with the principal shear strain axis, allowing them to capture maximum response to applied shear while rejecting bending-moment contributions. The strain gauges convert the mechanical deformation into electrical signals proportional to the weight, which are then processed by your weighing indicator.
This design gives shear beam load cells a critical advantage: inherent insensitivity to side loads and bending moments. This means that even if a forklift accidentally bumps the edge of a platform scale, or a tank experiences thermal expansion, the load cell continues to provide accurate readings.
Why Choose a Single-Ended Shear Beam Load Cell?
Excellent Side Load Rejection
Industrial weighing environments are rarely pristine. Forklift impacts, wind, vibration, and thermal expansion all introduce forces that can corrupt a measurement. Single-ended shear beam load cells are insensitive to side loads and bending moments, ensuring that your weight readings remain accurate even when conditions are less than ideal.
Robust Construction for Harsh Environments
These load cells are built to survive. Constructed from nickel-plated alloy tool steel or stainless steel and protected with IP67 or IP68 sealing, they resist moisture, dust, and corrosion. For outdoor platform scales exposed to rain, or for food processing facilities requiring washdowns, the single-ended shear beam load cell delivers reliable performance year after year.
High Accuracy and Stability
Our single-ended shear beam load cells achieve OIML R60 C3 accuracy class, with combined error typically ≤ ±0.02% of full scale. The shear strain measurement principle provides high accuracy and stability under uneven loading, making these load cells ideal for applications where load distribution may not be perfectly uniform.
Simplified Multi-Cell Installation
Because single-ended shear beam load cells are designed for multi-cell configurations, they can be easily connected in parallel into a shared circuit. Modern load cells often feature output current calibration, which ensures that multiple cells can be combined without additional trimming or matching. This simplifies system design and reduces installation time.
Available Capacities: 500 kg to 10 Ton
We supply single-ended shear beam load cells in a comprehensive range of capacities to match your specific application. The most commonly requested configurations include:
| Capacity | Typical Applications |
|---|---|
| 500 kg | Small platform scales, packaging machines, bench scales |
| 1 Ton | Medium platform scales, floor scales, pallet scales |
| 2 Ton | Large platform scales, tank legs, hopper supports |
| 5 Ton | Heavy-duty platform scales, silo weighing, conveyor scales |
| 10 Ton | Large tank weighing, industrial floor scales, heavy-duty platforms |
All capacities feature the same precision engineering and reliable performance that make single-ended shear beam load cells the trusted choice for industrial weighing applications.
Technical Specifications
While exact specifications vary by capacity and model, our single-ended shear beam load cells share a common set of performance characteristics:
| Parameter | Typical Specification |
|---|---|
| Type | Single-Ended Shear Beam (Cantilever) |
| Capacities Available | 500 kg, 1 Ton, 2 Ton, 5 Ton, 10 Ton |
| Material | Nickel-plated Alloy Tool Steel, Stainless Steel (optional) |
| Ingress Protection | IP67 (standard), IP68 (stainless steel versions) |
| Accuracy Class | OIML R60 C3, NTEP Class III |
| Output Sensitivity | 2.0 mV/V or 3.0 mV/V |
| Combined Error | ≤ ±0.02% F.S. |
| Non-linearity | ≤ ±0.025% F.S. |
| Hysteresis | ≤ ±0.025% F.S. |
| Creep (30 minutes) | ≤ ±0.025% F.S. |
| Safe Overload | 150% of rated capacity |
| Ultimate Overload | 300% of rated capacity |
| Compensated Temperature | -10°C to +40°C |
| Operating Temperature | -20°C to +60°C |
| Excitation Voltage | 10V DC (recommended), 15V DC (maximum) |
| Cable Length | 3m standard (longer available) |
These specifications ensure that your load cell delivers high accuracy and stability across its entire operating range.
Applications: Where Single-Ended Shear Beam Load Cells Excel
Platform and Floor Scales
Single-ended shear beam load cells are the standard choice for platform scales and floor scales where multiple load cells are required. A typical four-cell configuration places one load cell at each corner of the platform, providing stable, accurate weighing for pallets, containers, and heavy items.
Tank, Silo, and Hopper Weighing
In process industries, single-ended shear beam load cells are used to weigh storage tanks, silos, and hoppers. The load cells are mounted beneath the vessel legs, supporting the weight and providing accurate inventory monitoring. The side-load rejection capability is particularly valuable for outdoor tanks that experience wind loads and thermal expansion.
Conveyor Belt Scales
Single-ended shear beam load cells are integrated into conveyor belt scales for continuous weighing of bulk materials. Their resistance to vibration and dynamic forces makes them ideal for this demanding application.
Packaging and Filling Machines
For packaging and bottling plants, single-ended shear beam load cells provide the precision needed for accurate filling and dosing. Their fast response and stability ensure consistent product weights.
Pallet Truck and Onboard Weighing
The compact design and robust construction of single-ended shear beam load cells make them suitable for pallet truck scales and onboard weighing systems on vehicles, where they must withstand the rigours of movement and vibration.
Material Selection: Alloy Steel vs. Stainless Steel
Choosing the right material for your single-ended shear beam load cell is critical for long-term reliability. Here is a comparison to help you decide:
| Criterion | Alloy Steel (Nickel-Plated) | Stainless Steel |
|---|---|---|
| Cost | Lower | Higher |
| Corrosion Resistance | Good for indoor, dry environments | Excellent for washdown, food processing, and outdoor exposure |
| IP Rating (Typical) | IP67 | IP68 |
| Best Applications | General platform scales, dry warehouses, indoor weighing | Food/beverage, pharmaceutical, chemical, outdoor installations, washdown environments |
For indoor, dry applications, nickel-plated alloy steel provides excellent performance at lower cost. If the operating environment involves water, chemicals, or sanitation requirements, stainless steel is the safer choice.
Installation Considerations
Proper installation is essential for getting the best performance from your single-ended shear beam load cell. Key considerations include:
- Mounting Surface: The mounting surface must be flat, rigid, and hardened. Use high-strength hardened bolts for secure attachment .
- Alignment: Ensure the load cell is mounted level and that the load is applied perpendicular to the beam. Misalignment can introduce errors.
- Mounting Hardware: Use appropriate mounting modules or assemblies that handle side loads and lift-off protection.
- Cable Protection: Route the cable away from heat, sharp edges, and power lines. Use strain relief at the cable exit.
- Leveling: Ensure the entire system is level for accurate weighing.
- Calibration: Calibrate the load cells upon initial installation and periodically thereafter to maintain accuracy.
Our team at UP Scales can provide guidance on selecting the right load cell and mounting accessories for your specific application.
Why Buy from UP Scales?
As a trusted supplier of industrial weighing components, UP Scales offers:
- Genuine Products: All load cells are sourced from reputable manufacturers and meet stringent quality standards.
- Application Support: We help you select the correct capacity and configuration for your weighing system.
- Competitive Pricing: Direct pricing without unnecessary markups.
- Technical Guidance: Our team can advise on installation, calibration, and troubleshooting.
Whether you are building a new platform scale, upgrading a tank weighing system, or replacing a failed load cell, we have the right solution for your needs.
Type Single-Ended Shear Beam (Cantilever)
Capacities Available 500 kg, 1 Ton, 2 Ton, 5 Ton, 10 Ton
Material Nickel-plated Alloy Tool Steel, Stainless Steel (optional)
Ingress Protection IP67 (standard), IP68 (stainless steel versions)
Accuracy Class OIML R60 C3, NTEP Class III
Output Sensitivity 2.0 mV/V or 3.0 mV/V
Combined Error ≤ ±0.02% F.S.
Creep (30 minutes) ≤ ±0.025% F.S.
Safe Overload 150% of rated capacity
Ultimate Overload 300% of rated capacity
Compensated Temperature -10°C to +40°C
Operating Temperature -20°C to +60°C
A single-ended shear beam load cell is fixed at one end and loaded at the other (cantilever configuration). A double-ended shear beam load cell is secured at both ends and loaded at the centre. Single-ended load cells are ideal for platform scales and tank weighing with multiple cells, while double-ended load cells are used for higher-capacity applications like weighbridges
We supply single-ended shear beam load cells in capacities ranging from 500 kg to 10 Ton, with other capacities available upon request. The most common configurations are 500 kg, 1 Ton, 2 Ton, 5 Ton, and 10 Ton.
For most platform scales, four load cells are used—one at each corner. Smaller scales may use three, while larger scales may use six or more. The number depends on the platform size and the load distribution requirements.
Choose nickel-plated alloy steel for indoor, dry environments and cost-sensitive applications. Choose stainless steel for washdown environments, food processing, pharmaceutical applications, or outdoor installations where corrosion resistance is essential.
Stainless steel single-ended shear beam load cells with IP68 protection are suitable for washdown environments. Alloy steel versions with IP67 protection are suitable for damp environments but not direct high-pressure washdown.
Signs that a load cell may need replacement include drifting readings, unstable weight display, inaccurate measurements, or physical damage. If calibration does not resolve the issue, the load cell may need to be replaced. Our team can help diagnose the problem and recommend a suitable replacement.
