Capsulated Load Cell: Hermetically Sealed Protection for Precision Weighing in Harsh Environments

When your weighing application involves moisture, dust, chemicals, or frequent wash-downs, an ordinary load cell simply will not survive. The internal strain gauges—the delicate sensing elements that convert force into electrical signals—are vulnerable to contamination, corrosion, and short circuits. For these demanding environments, you need a load cell that is not just protected, but hermetically sealed. This is where the capsulated load cell proves its worth.

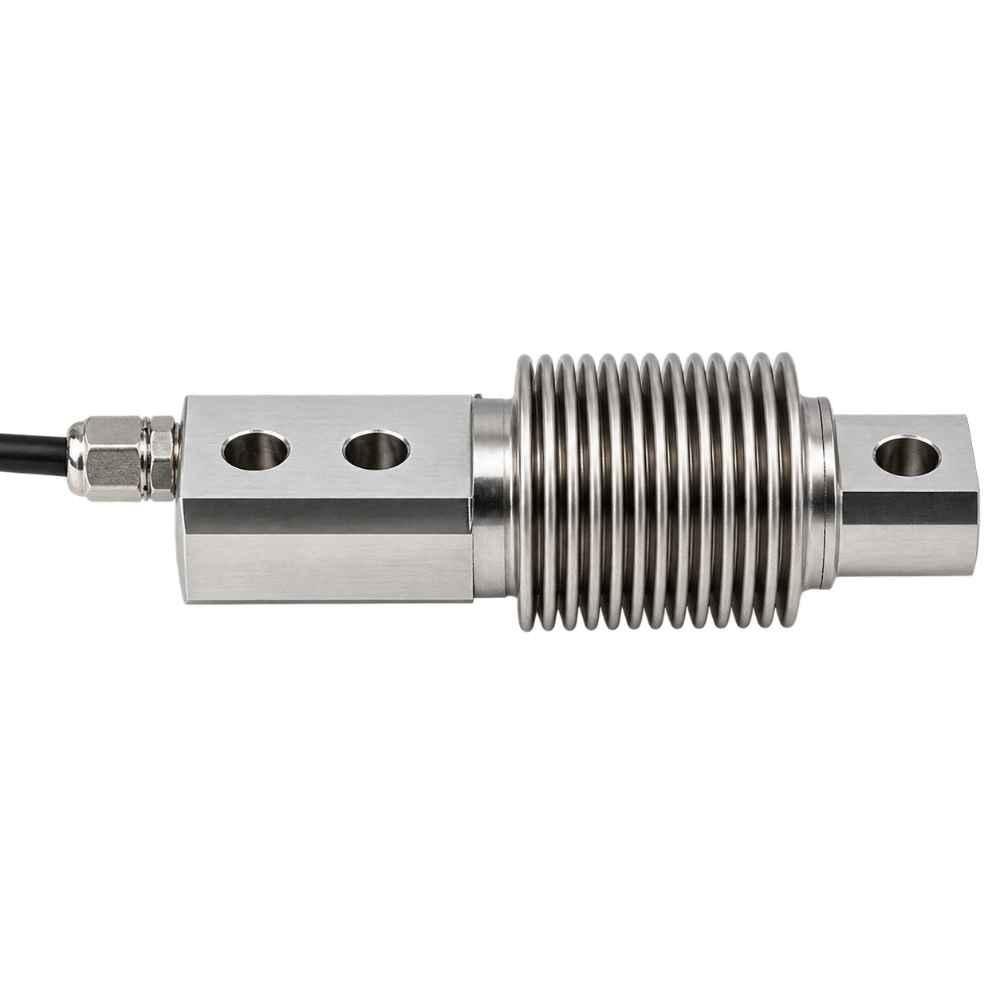

At UP Scales, we supply capsulated load cells designed for applications where environmental protection is paramount. With a 500 kg capacity, this load cell is the ideal solution for platform scales, tank weighing, and industrial weighing systems operating in food processing, pharmaceutical, and chemical environments. Whether you are dealing with high-pressure washdowns, corrosive vapours, or simply need a load cell that will last for years without failure, the capsulated design delivers the reliability your operation demands.

What is a Capsulated Load Cell?

A capsulated load cell is a precision force sensor in which the strain gauge area is completely enclosed and hermetically sealed from the external environment. Unlike standard load cells that may use a simple cover or potting compound for protection, a capsulated load cell features a welded or heat-fused seal that creates an impermeable barrier between the sensitive internal components and the outside world .

The term "capsulated" refers to the cup-shaped seal cap that is placed over the strain gauges and permanently bonded to the load cell body. In advanced designs, this seal cap is heat-fused onto the surface, forming a hermetically sealed joint that prevents any moisture, dust, or chemical ingress . The result is a load cell that can withstand the most aggressive cleaning procedures, including high-pressure washdowns, without any compromise in accuracy or reliability.

Why Choose a Capsulated Load Cell?

Hermetically Sealed for Maximum Protection

The defining feature of a capsulated load cell is its hermetic sealing. This means the strain gauges and internal circuitry are completely isolated from the surrounding environment. For industries that require regular washdowns—such as food and beverage processing, pharmaceutical manufacturing, and chemical production—this level of protection is essential. A hermetically sealed load cell can be cleaned with high-pressure water jets and aggressive cleaning agents without any risk of damage.

Superior Corrosion Resistance

Capsulated load cells are typically constructed from stainless steel, offering excellent resistance to corrosion and chemical attack. The welded seal ensures that there are no crevices or joints where moisture can accumulate and cause rust or degradation. This makes them ideal for use in wet, humid, or chemically aggressive environments.

Reliable Performance in Demanding Conditions

By eliminating the pathways through which moisture and contaminants can enter, capsulated load cells deliver consistent, accurate measurements over a long service life. You can trust that your weighing system will perform reliably, day after day, even in the most challenging conditions. This reliability translates directly into reduced downtime, lower maintenance costs, and improved operational efficiency.

Designed for Hygiene-Critical Applications

In food and pharmaceutical production, hygiene is non-negotiable. The smooth, sealed surface of a capsulated load cell is easy to clean and prevents the accumulation of bacteria or contaminants. This design supports compliance with HACCP, GMP, and other hygiene standards, making it the preferred choice for industries where cleanliness is paramount.

Technical Specifications

The IP68 rating indicates that the load cell is completely protected against dust ingress and can withstand continuous immersion in water under specified conditions. This level of protection is made possible by the hermetic sealing of the strain gauge area, ensuring that the internal components remain dry and functional even in the wettest environments.

Applications: Where Capsulated Load Cells Excel

Food and Beverage Processing

Food processing environments are among the most demanding for weighing equipment. Frequent washdowns with high-pressure water, exposure to food acids and cleaning chemicals, and strict hygiene requirements all demand a load cell that can handle the abuse. Capsulated load cells are the ideal choice for platform scales, checkweighers, and filling machines in this industry.

Pharmaceutical Manufacturing

In pharmaceutical production, accuracy and cleanliness are critical. Capsulated load cells provide the hermetic protection needed to prevent contamination while delivering the precision required for formulation and quality control. Their smooth, sealed surfaces are easy to clean and support GMP compliance.

Chemical and Petrochemical Industries

Chemical plants expose equipment to corrosive vapours, liquids, and powders. A standard load cell would quickly succumb to these conditions. Capsulated load cells, with their stainless steel construction and hermetic sealing, offer the corrosion resistance and durability needed for reliable long-term operation.

Platform Scales and Industrial Weighing

For any platform scale operating in a wet or dusty environment—whether indoors or outdoors—a capsulated load cell provides the protection needed to ensure accurate, reliable performance. This includes floor scales, bench scales, and tank weighing systems in industries ranging from logistics to manufacturing.

Washdown Applications

Any application involving high-pressure cleaning or frequent sanitation benefits from capsulated load cells. This includes meat and poultry processing, dairy operations, breweries, and other facilities where hygiene is a priority.

Installation Considerations

Proper installation is essential for getting the best performance from your capsulated load cell. Key considerations include:

1. Mounting: Ensure the load cell is mounted on a rigid, flat surface with the load applied correctly (compression, tension, or shear as per the model).
2. Cable Protection: Protect the cable from damage and ensure it is routed to avoid strain or interference.
3. Overload Protection: Although capsulated load cells have excellent overload capacity, ensure that the system design prevents accidental overloading beyond the safe overload limit.
4. Calibration: Calibrate the load cell upon initial installation and periodically thereafter to maintain accuracy.

Our team at UP Scales can provide guidance on selecting the right load cell and mounting accessories for your specific application.

Why Buy from UP Scales?

As a trusted supplier of industrial weighing components, UP Scales offers:

1. Genuine Products: All load cells are sourced from reputable manufacturers and meet stringent quality standards.
2. Application Support: We help you select the correct capacity and configuration for your weighing system.
3. Competitive Pricing: Direct pricing without unnecessary markups.
4. Technical Guidance: Our team can advise on installation, calibration, and troubleshooting.

Whether you are building a new platform scale, upgrading a tank weighing system, or replacing a failed load cell, we have the right solution for your needs.
