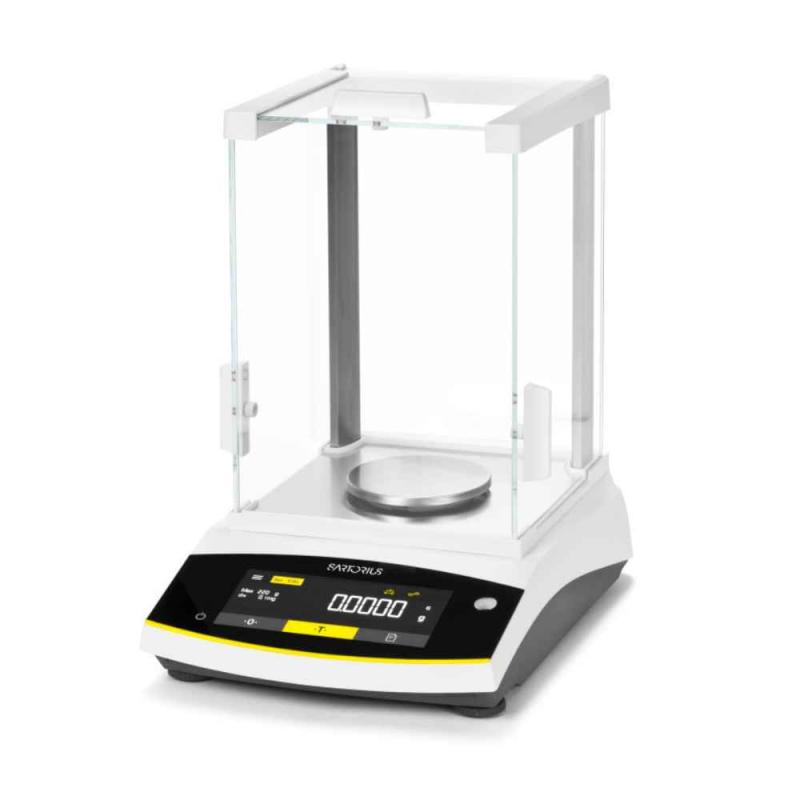

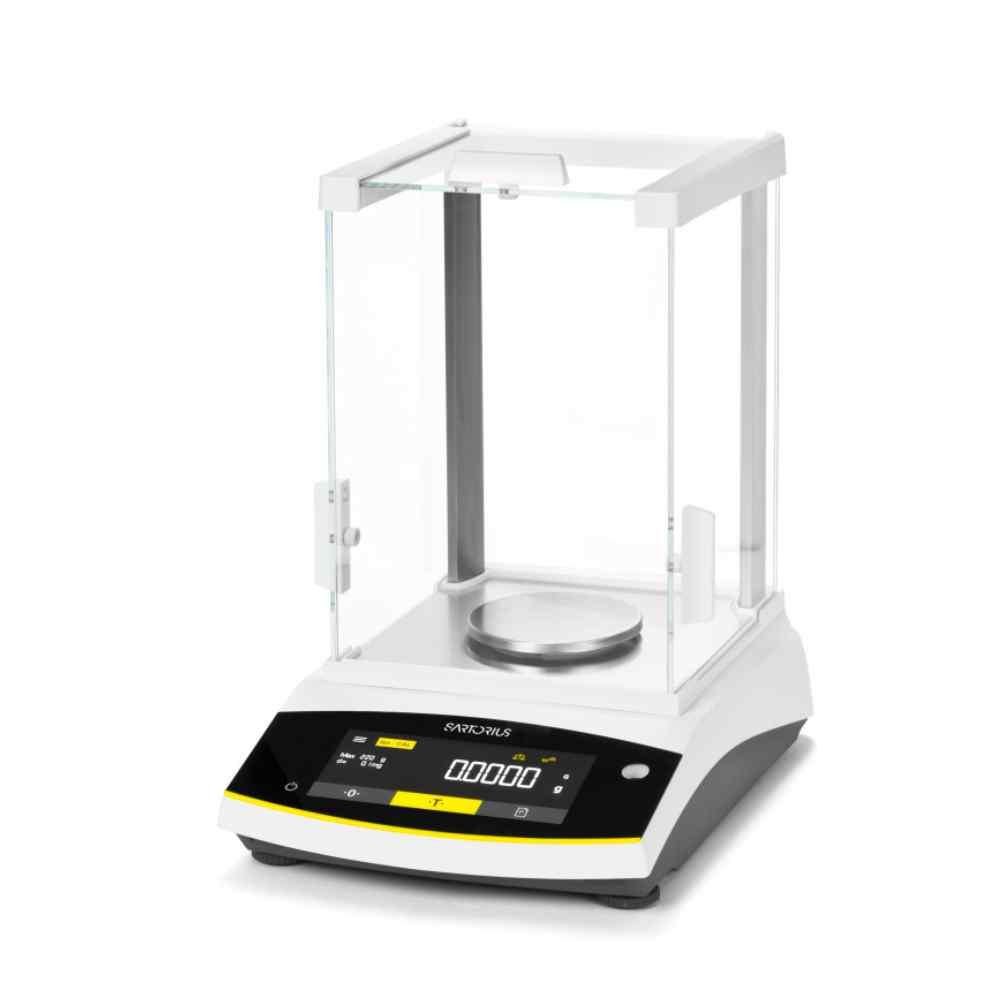

Why the Sartorius Entris® II BCE224i-1x is the Smart Choice for Analytical Laboratories
The Entris® II series was developed with a singular focus: to provide the best value in its class for basic weighing tasks without compromising on quality or performance. Here is what makes the BCE224i-1x truly exceptional:
- Proprietary Monolithic Weighing Technology: At the heart of every Entris® II analytical balance is Sartorius's patented monolithic weigh cell—a single-piece precision-machined component invented by Sartorius. This advanced technology delivers exceptional repeatability, long-term stability, and faster stabilization times, ensuring that you get accurate results you can trust year after year.
- Fully Automatic Internal Calibration (isoCAL): The BCE224i-1x features Sartorius's advanced isoCAL system—a fully automatic internal calibration and adjustment mechanism. The balance continuously monitors temperature changes and time intervals, automatically performing a calibration when needed to ensure optimal accuracy. This feature, unique in this weight class, guarantees that your measurements are always compliant with SOPs and regulatory requirements.
- Exceptional Speed and Stability: With a typical stabilization time of just 1.5 seconds, the BCE224i-1x is among the fastest analytical balances in its class. This means less waiting and more productivity, whether you are weighing multiple samples or performing time-critical analyses. The state-of-the-art weighing sensors ensure stable readings even in challenging laboratory conditions.
- Intuitive Hybrid Screen Interface: The BCE224i-1x features a clear, user-friendly hybrid screen that combines the safety and durability of LED technology with an easy-to-navigate interface. The self-explanatory menu structure and plain-text prompts guide you through every operation, reducing training time and minimizing the risk of operator error.
- Robust Design for Long-Term Reliability: Built to withstand the demands of daily laboratory use, the BCE224i-1x features a rugged design with integrated overload protection. The housing is made from hard-wearing polybutylene terephthalate (PBT), stainless steel, and glass, ensuring high chemical resistance and easy cleaning.
In-Depth Technical Specifications
| Feature | Specification |
|---|---|
| Model | Sartorius Entris® II BCE224i-1x |
| Weighing Capacity | 220 g |
| Readability (d) | 0.1 mg (0.0001 g) |
| Repeatability (Typical) | ±0.1 mg |
| Linearity (Limits) | ±0.2 mg |
| Sensitivity Drift (+10°C to +30°C) | ±1.5 ppm/K |
| Typical Stabilization Time | ≤ 1.5 seconds |
| Weighing Pan Size | Ø 90 mm |
| Weighing Chamber Height | 240 mm |
| Tare Range | Up to 100% of maximum capacity |
| Calibration System | isoCAL automatic internal calibration (triggered by temperature change of 1.5 K or time interval of 4 hours) |
| Display | Hybrid display with LED and touchscreen technology |
| Interfaces | USB Type-C, RS-232 (9-pin) |
| Built-in Applications | Weighing, Density Determination, Percentage Weighing, Checkweighing, Peak Hold, Counting, Unstable Conditions Mode, Animal Weighing |
| Supported Languages | English, German, French, Italian, Spanish, Portuguese, Russian, Polish |
| Dimensions (W × D × H) | 219 × 317 × 345 mm |
| Net Weight | Approx. 5.70 kg |
| Power Supply | AC adapter (100–240 V) |
Key Features and Benefits
Monolithic Weighing Technology
Sartorius invented the monolithic weigh cell, and it remains the gold standard for analytical balances. Unlike traditional weighing systems that use multiple mechanical parts, the monolithic weigh cell is a single, precisely machined piece of aluminum. This design offers:
- Exceptional Stability: Resists temperature fluctuations and shock better than conventional systems
- Superior Repeatability: Delivers consistent results from measurement to measurement
- Faster Response: Achieves stable readings more quickly
- Long-Term Reliability: Fewer moving parts mean less wear and a longer operational life
Fully Automatic Internal Calibration (isoCAL)
The isoCAL system is a standout feature in this weight class. It provides:
- Optimal Accuracy: Automatically calibrates based on temperature and time changes
- SOP Compliance: Ensures your balance meets regulatory requirements without manual intervention
- Self-Monitoring: Alerts you if calibration falls outside the normal range
- Documentation Ready: Automatic calibration records support GLP/ISO documentation
Fast and Reliable Results
The BCE224i-1x delivers:
- Stabilization in 1.5 Seconds: One of the fastest in its class
- Excellent Repeatability: ±0.1 mg for consistent results
- Overload Protection: Rugged design protects the weighing system from accidental damage
Easy Cleaning and High Chemical Resistance
Designed for laboratory environments, the BCE224i-1x features:
- Wide-Clean Design: Easy access for cleaning to prevent cross-contamination
- Chemical-Resistant Materials: Parts made from PBT, stainless steel, and glass resist harsh chemicals
- Effective Draft Shield: Coated glass parts minimize electrostatic influences
Plug-and-Play Connectivity
The BCE224i-1x offers modern connectivity options:
- USB Type-C and RS232 Interfaces: Connect to printers, PCs, and other devices
- Automatic Printer Detection: Recognizes Sartorius printers (YDP30 or YDP40)
- PC-Direct Feature: Transfer weighing data directly into Microsoft Excel or Word
Built-in Applications
The BCE224i-1x includes eight built-in application programs:
- Weighing: Standard mass measurement with high precision
- Density Determination: Measure density of solids and liquids (with optional kit)
- Percentage Weighing: Display weight as a percentage of a reference sample
- Checkweighing: Visual indicators for pass/fail quality control
- Peak Hold: Capture the highest reading during dynamic weighing
- Counting: Automatically count identical parts
- Unstable Conditions: Average readings for moving or vibrating samples
- Animal Weighing: Average readings for moving subjects
Ideal Applications
The Sartorius Entris® II BCE224i-1x is essential for a wide range of analytical applications:
- Pharmaceutical Quality Control: Raw material testing, finished product analysis, stability studies
- Analytical Chemistry: Sample preparation, reference material weighing, trace analysis
- Research & Development: Formulation development, catalyst studies, material characterization
- Academic Laboratories: Teaching and research in chemistry, biology, and physics
- Environmental Testing: Water analysis, soil testing, contamination studies
- Food & Beverage: Quality control, ingredient verification, nutritional analysis
- Cosmetics: Formulation development, quality testing
The Sartorius Assurance: German Engineering, Global Trust
Sartorius is a global leader in laboratory and process technologies, with a reputation built on nearly 150 years of innovation. The Entris® II series is manufactured to the highest quality standards in Germany, ensuring consistent, reliable performance that you can trust for years. When you choose a Sartorius balance, you are investing in an instrument that delivers uncompromising accuracy and durability.
Why Choose UP Scales?
As your trusted partner for precision weighing solutions, UP Scales offers:
- 100% Genuine Product: You receive an authentic Sartorius Entris® II BCE224i-1x with full manufacturer warranty and support
- Expert Consultation: We help you select the right model and accessories for your specific application
- Competitive Pricing: The best value on this premium German analytical balance
- Dedicated Support: Professional after-sales service, calibration assistance, and technical advice
- Pan India Presence: We serve customers across India with prompt delivery and support
Capacity
220gm
Readability
0.1mg (0.0001gm)
Repeatability
0.1mg (0.0001gm)
Stabilization Time
≤1.5 Second
Pan Size
Ø 90
Calibration
isoCAL
Output
RS232C
Dimension
219×317×345mm
Government Calibration Verification Certificate & Stamping (Legal Metrology Department)
Yes (On Request)
NABL Certificate
Yes (On Request)
The key difference is calibration. The BCE224i-1x features isoCAL—an internal motorized calibration weight that automatically calibrates the balance based on temperature and time changes. The BCE224-1x requires external calibration using a separate certified weight. The internal calibration model offers greater convenience and ensures consistent accuracy without manual intervention.
Monolithic weighing technology is Sartorius's patented single-piece weigh cell design. Unlike traditional systems that use multiple springs and levers, the monolithic weigh cell is a single, precisely machined component. This design provides superior repeatability, faster stabilization times, exceptional long-term stability, and better resistance to environmental factors like temperature fluctuations and vibration.
The isoCAL system uses a built-in motorized calibration weight. It automatically performs a calibration and adjustment when it detects a temperature change of 1.5K or after a set time interval of 4 hours. You can also trigger it manually. The balance automatically documents the calibration event, supporting compliance with SOPs and regulatory requirements.
Yes, absolutely. The BCE224i-1x features both USB Type-C and RS232 interfaces. With the PC-Direct feature, you can connect the balance to your computer and transfer weighing data directly into Microsoft Excel or Word documents without needing additional software. Simply connect, open your document, and press the print key.
The balance includes eight built-in applications, accessed through the intuitive hybrid screen interface. The self-explanatory menu structure and plain-text prompts guide you through each application. For example, to perform density determination, you simply follow the on-screen instructions to weigh the sample in air and then in liquid, and the balance calculates the density automatically.
Yes. With its 0.1mg readability, excellent repeatability, and isoCAL automatic calibration, the BCE224i-1x is well-suited for pharmaceutical applications. It supports GLP/ISO documentation through its printer connectivity and data transfer capabilities, and its rugged design ensures reliable performance in regulated environments.
The balance is designed for minimal maintenance. The isoCAL system ensures continuous accuracy. For routine verification, you can use an external calibration weight (recommended: 200g E2 class). The balance also features a leveling sensor that alerts you when the balance is not level, ensuring optimal performance.
