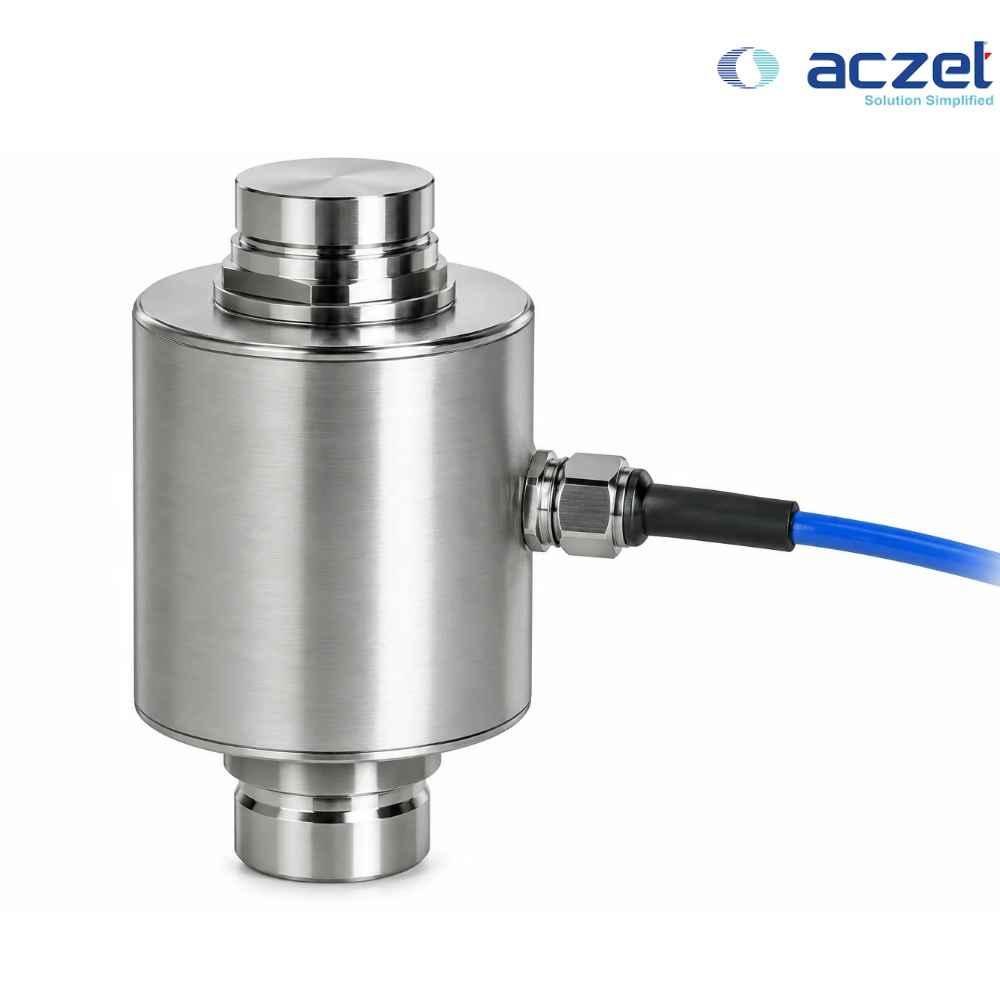

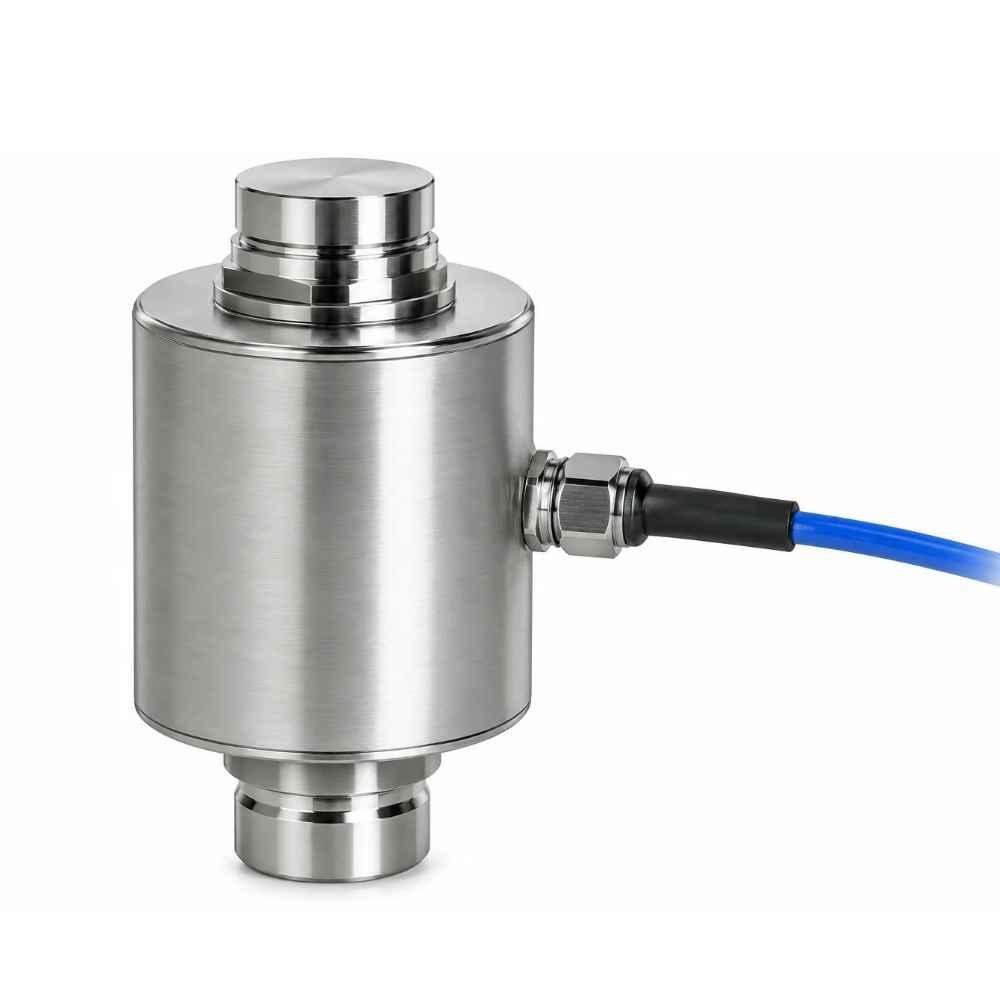

Digital Compression Load Cell: The Gold Standard for Tank, Silo, and Heavy-Duty Industrial Weighing
When you are weighing a silo that holds hundreds of tons of raw material, or a mixing vessel where precise ingredient ratios determine product quality, the load cell at the heart of your system must be nothing short of exceptional. Among the various load cell technologies available, the digital compression load cell stands out as the definitive choice for applications where high capacity, exceptional accuracy, and long-term reliability are non-negotiable.
At UP Scales, we supply digital compression load cells engineered for the most demanding industrial environments. Available in 10 Ton, 20 Ton, and 30 Ton capacities, these load cells are the trusted solution for tank weighing, silo monitoring, hopper batching, and heavy-duty weighbridge applications. Whether you are upgrading an existing weighing system or building a new installation from the ground up, our compression load cells deliver the precision and durability your operation depends on.
What is a Digital Compression Load Cell?
A compression load cell is a precision force sensor designed to measure weight through compression—that is, the load is applied directly onto the top surface of the load cell, pressing down on it. Unlike shear beam or tension load cells that are loaded in different orientations, a compression load cell is engineered to bear the full weight of a vessel, tank, or structure directly on its loading surface.
The term "digital" refers to the advanced signal processing capabilities integrated into the load cell or its associated electronics. While traditional analog load cells output a raw millivolt signal that requires external amplification and conversion, digital load cells often incorporate onboard processing, temperature compensation, and sometimes direct digital output. This results in superior accuracy, reduced noise, and simplified system integration.
Why Choose a Digital Compression Load Cell?
Purpose-Built for Vertical Loads
Compression load cells are the workhorses for heavy-duty tanks and silos. They are specifically designed to handle large vertical loads, making them ideal for tall storage vessels that can weigh hundreds of tons when full. Their robust construction and direct load path ensure stable, reliable measurements even under the most demanding conditions.
Exceptional Stability and Overload Protection
These load cells are engineered to withstand the rigors of industrial use. They feature high overload capacity—typically 150% of rated capacity for safe overload and 300% for ultimate overload—protecting your investment from accidental overloading. The hermetically sealed stainless steel construction ensures IP68 protection, making them resistant to moisture, dust, and corrosion even in outdoor installations or wash-down environments.
Superior Accuracy for Critical Processes
Our digital compression load cells achieve OIML R60 C3 accuracy class, with combined error typically ≤ ±0.02% of full scale. This level of precision is essential for applications where accurate ingredient measurement directly impacts product quality, regulatory compliance, and profitability. The digital signal processing further enhances accuracy by minimizing the effects of temperature fluctuations and electrical noise.
Simplified Installation with Weigh Modules
Compression load cells are often used in conjunction with weigh modules—mounting assemblies that handle side loads, thermal expansion, and lift-off protection. This simplifies installation and ensures optimal performance. The load cell sits within the module, which is bolted to the floor or support structure, and the tank leg or vessel foot rests on top of the load cell.
Available Capacities: 10 Ton, 20 Ton, and 30 Ton
We supply digital compression load cells in a range of capacities to match your specific application. The most commonly requested configurations are:
| Capacity | Typical Applications |
|---|---|
| 10 Ton | Medium-sized tanks, hoppers, batching systems, and industrial weighing |
| 20 Ton | Large silos, storage vessels, industrial mixing tanks, and process weighing |
| 30 Ton | High-capacity silos, heavy-duty weighbridges, and bulk material handling systems |
All capacities feature the same robust construction and precision engineering that make digital compression load cells the trusted choice for critical weighing operations.
Technical Specifications
While exact specifications vary by capacity and model, our digital compression load cells share a common set of performance characteristics:
| Parameter | Typical Specification |
|---|---|
| Type | Digital Compression Load Cell |
| Capacities Available | 10 Ton, 20 Ton, 30 Ton |
| Material | Stainless Steel (hermetically sealed) or nickel-plated alloy steel |
| Ingress Protection | IP68 – hermetically sealed and suitable for submersible applications |
| Accuracy Class | OIML R60 C3 |
| Output Sensitivity | 2.0 ± 0.002 mV/V |
| Combined Error | ≤ ±0.02% F.S. |
| Creep (30 Minutes) | ≤ ±0.016% F.S. |
| Safe Overload | 150% of rated capacity |
| Ultimate Overload | 300% of rated capacity |
| Compensated Temperature Range | -10°C to +40°C |
| Operating Temperature Range | -35°C to +70°C |
| Excitation Voltage | 5–12 V DC (recommended), 18 V DC (maximum) |
| Cable | Shielded 6-core or 4-core cable, standard length 10–20 m |
These specifications ensure that your load cell delivers high accuracy and precision even under prolonged load and challenging environmental conditions.
Applications: Where Digital Compression Load Cells Excel
Tank, Silo, and Hopper Weighing
The most common application for compression load cells is in tank, silo, and hopper weighing. These load cells are mounted beneath the legs of the vessel, where they directly bear the weight of the contents. The digital output provides accurate, real-time weight data for inventory management, batching, and process control. Whether you are storing liquids in a tank, powders in a silo, or granules in a hopper, compression load cells deliver the reliability you need.
Batching, Blending, and Mixing Systems
Accurate ingredient measurement is critical in batching operations. Digital compression load cells deliver the precision needed for batching, blending, and mixing systems, ensuring that each batch meets exact specifications and reducing costly errors. The digital signal processing ensures fast, stable readings even during dynamic mixing processes.
Weighbridges and Heavy-Duty Platform Scales
Compression load cells are also used in weighbridges and heavy-duty platform scales, where they bear the weight of trucks, trailers, and large containers. Their high capacity and exceptional overload protection make them ideal for these demanding applications.
Process Vessels with Mixing or Agitation
When a vessel has a mixer or agitator, the load cells must handle dynamic forces in addition to the static weight. Compression load cells, especially when paired with appropriate weigh modules, provide the stability needed to measure accurately even in these challenging conditions.
Installation Considerations
Proper installation is essential for getting the best performance from your digital compression load cell. Key considerations include:
- Mounting: The load cell should be mounted on a rigid, flat surface, with the load applied precisely and vertically to the loading surface.
- Weigh Modules: For optimal performance, use appropriate weigh modules that handle side loads, thermal expansion, and lift-off protection.
- Alignment: Ensure that the load is introduced perpendicular to the load cell and that there is no binding or side-loading.
- Cable Routing: Protect cables from damage and ensure they are routed to avoid interference.
- Calibration: Calibrate the load cell upon initial installation and periodically thereafter to maintain accuracy.
Our team at UP Scales can provide guidance on selecting the right load cell and mounting accessories for your specific application.
Why Buy from UP Scales?
As a trusted supplier of industrial weighing components, UP Scales offers:
- Genuine Products: All load cells are sourced from reputable manufacturers and meet stringent quality standards.
- Application Support: We help you select the correct capacity and configuration for your weighing system.
- Competitive Pricing: Direct pricing without unnecessary markups.
- Technical Guidance: Our team can advise on installation, calibration, and troubleshooting.
Whether you are building a new tank weighing system, upgrading an existing silo installation, or replacing a failed load cell, we have the right solution for your needs.
Ready to upgrade your tank, silo, or hopper weighing system with reliable, high-precision load cells?
Contact UP Scales today for pricing, technical consultation, or to discuss your specific requirements.
Type Digital Compression Load Cell
Capacities Available 10 Ton, 20 Ton, 30 Ton
Material Stainless Steel (hermetically sealed) or Nickel-plated Alloy Steel
Ingress Protection IP68 (hermetically sealed, submersible)
Accuracy Class OIML R60 C3
Output Sensitivity 2.0 ± 0.002 mV/V
Combined Error ≤ ±0.02% F.S.
Creep (30 minutes) ≤ ±0.016% F.S.
Safe Overload 150% of rated capacity
Ultimate Overload 300% of rated capacity
Compensated Temperature -10°C to +40°C
Operating Temperature -35°C to +70°C
A compression load cell is designed to measure loads applied vertically, pressing down on its top surface. It is ideal for tank, silo, and hopper weighing where the vessel legs rest on the load cells. A shear beam load cell measures loads through shear forces and is typically used in platform scales and weighbridges. The choice depends on the specific application and structural requirements.
We supply digital compression load cells in 10 Ton, 20 Ton, and 30 Ton capacities, with other capacities available upon request.
Our load cells achieve OIML R60 C3 accuracy class, with combined error typically ≤ ±0.02% of full scale. This level of precision is suitable for commercial weighing applications where accuracy is legally required.
They are hermetically sealed with IP68 protection, providing excellent resistance to moisture, dust, and water immersion. This makes them suitable for outdoor silos and demanding industrial environments.
Yes, they are the preferred choice for tank, silo, and hopper weighing. The compression design provides inherent stability, and when paired with appropriate weigh modules, it handles side loads, thermal expansion, and lift-off protection
The choice depends on the maximum load your system will experience, including the dead weight of the vessel or structure. As a general rule, select a capacity that provides a safety margin of at least 25-30% above your maximum expected load. Our team can help you calculate the right capacity for your application.
