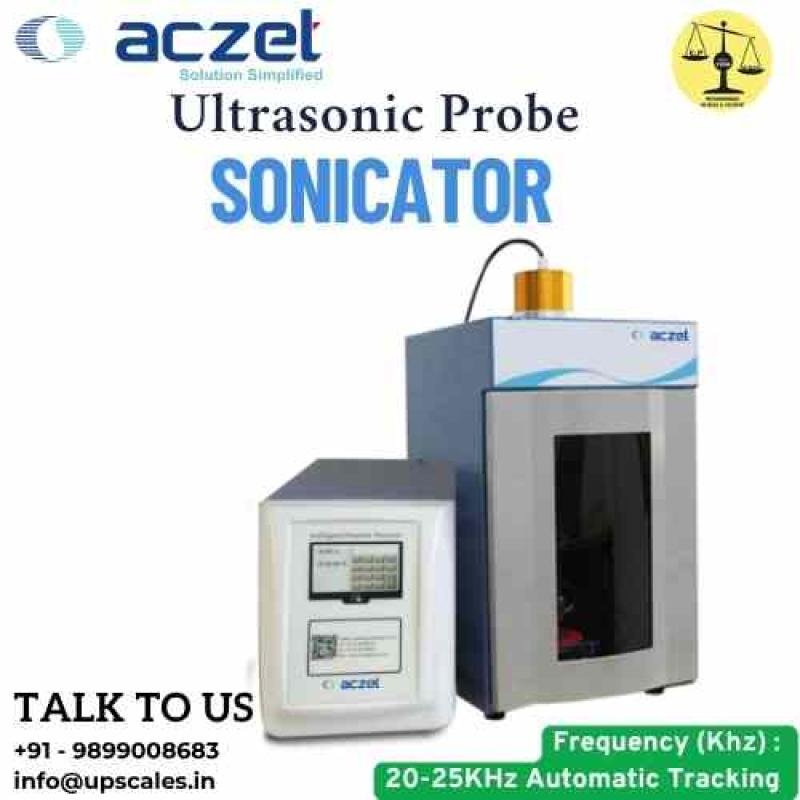

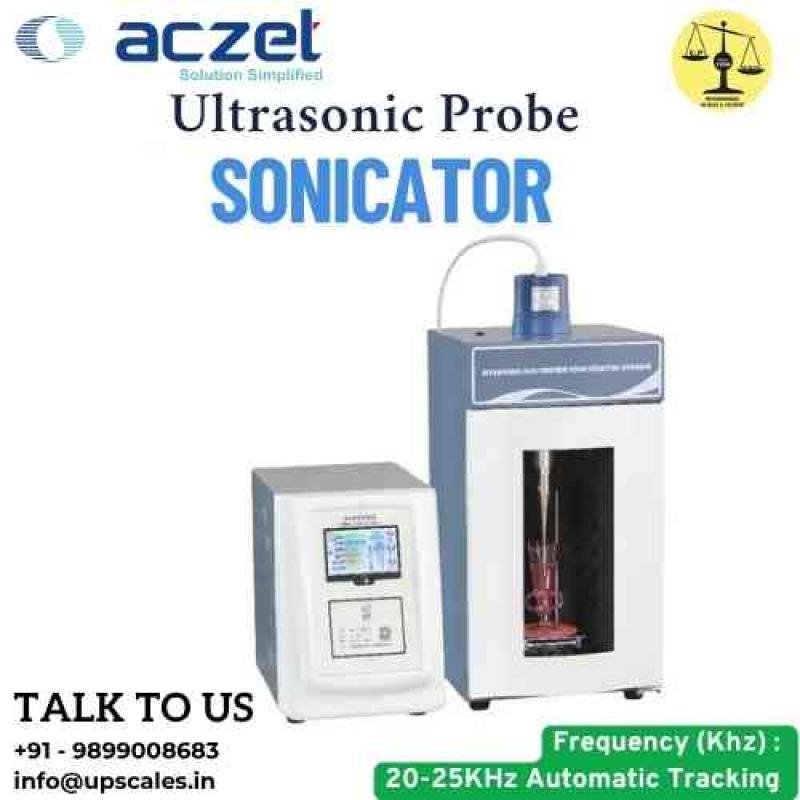

Aczet Ultrasonic Probe Sonicator – Precision, Power, and Performance for Advanced Laboratory Applications
The Aczet Ultrasonic Probe Sonicator is a high-performance laboratory instrument designed for efficient cell disruption, homogenization, emulsification, and nanoparticle dispersion. Engineered with cutting-edge technology and robust construction, this probe sonicator delivers consistent results across diverse applications in biotechnology, pharmaceuticals, chemistry, and environmental sciences. Its versatility, precision control, and user-friendly features make it an indispensable tool for researchers and industrial professionals.
Key Features & Technological Advantages
1.) Advanced Ultrasonic Technology
- Frequency Range: Operates at 20-25 kHz with automatic frequency tracking to ensure optimal energy delivery, adapting to varying sample viscosities and densities.
- Adjustable Power Output: Models available with power ranges from 5W to 500W (e.g., APU 250: 5-250W; APU 500: 10-500W), enabling precise control for delicate or demanding samples.
2.) Precision Control & Automation

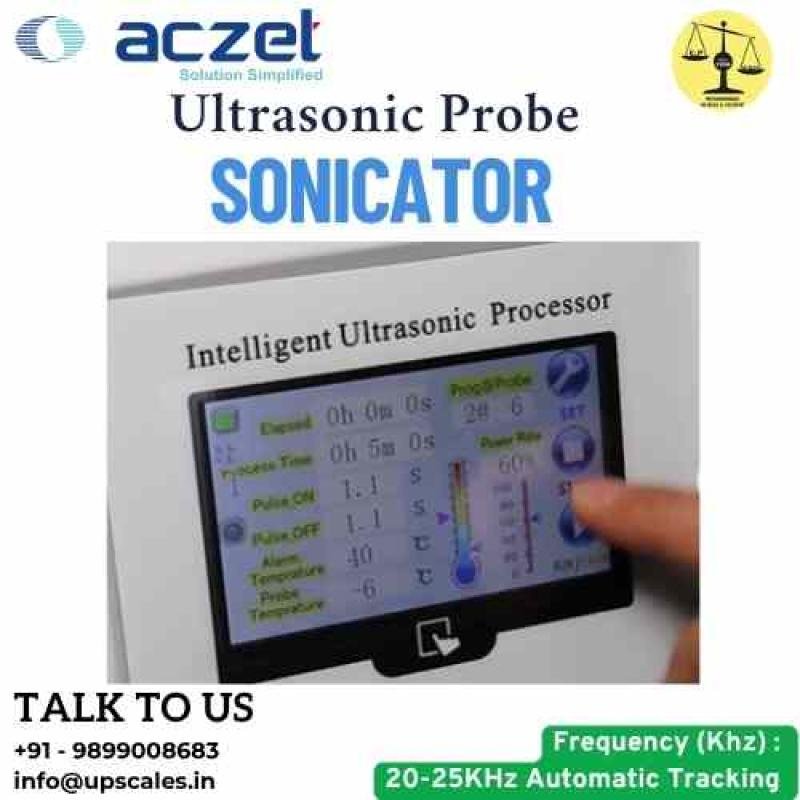

- Microprocessor-Based System: Features a touchscreen LCD interface for real-time monitoring and adjustment of parameters (ultrasonic time, power, duty cycle).
- Programmable Settings: Stores up to 50 operational protocols for repeatability and workflow efficiency.
- Temperature Management: Integrated temperature sensor with adjustable alarm (0-100°C) to prevent sample overheating.
3.) Durable & Flexible Design
- Interchangeable Probes: Multiple probe diameters (Ø2–Ø12 mm) accommodate volumes from 0.2 mL to 500 mL, ensuring compatibility with micro-samples or bulk processing.
- Robust Construction: Industrial-grade materials resist corrosion and wear, even with prolonged use in harsh chemical environments.
4.) Safety & Reliability
- Auto-Protection Functions: Over-temperature cut-off and power stabilization prevent damage to samples or equipment.
- Duty Cycle Control: Adjustable pulse mode (0.1–99.9%) reduces heat generation for heat-sensitive applications.
Applications of Aczet Ultrasonic Probe Sonicator
The Aczet Probe Sonicator excels in:
- Biological Research: Cell lysis, tissue homogenization, and DNA/RNA extraction.
- Pharmaceuticals: Nanomedicine preparation, liposome dispersion, and drug formulation.
- Chemistry: Emulsification, catalyst synthesis, and accelerated chemical reactions.
- Nanotechnology: Uniform dispersion of nanoparticles (e.g., graphene, CNTs).
- Environmental Science: Sludge treatment and pollutant degradation.
Technical Specifications
| Model | APU 250 | APU 500 |
|---|---|---|
| Frequency | 20-25 kHz (Auto-Tracking) | |
| Power Range | 5–250 W | 10–500 W |
| Standard Probe | Ø6 mm | Ø6 mm |
| Optional Probes | Ø2, Ø3, Ø8, Ø10 mm | Ø2, Ø3, Ø8, Ø10, Ø12 mm |
| Capacity | 0.2–250 mL | 0.2–500 mL |
| Display | Touchscreen LCD | |
| Power Supply | 230V ± 20%, 50-60Hz | |
| Dimensions | 600 × 300 × 500 mm | |
| Weight | 30 kg |
Why Choose Aczet?
- Proven Quality: Manufactured under stringent ISO standards, ensuring reliability for critical applications.
- Global Support: Comprehensive service network with prompt technical assistance.
- Custom Solutions: Tailored configurations for specialized industrial or research needs.
Frequency (Khz)
20-25KHz Automatic Tracking
Power (W) adjustable
5-250W
Probe (mm)
Ø 6
Optional Probe (mm)
Ø2, Ø3, Ø8, Ø10
Process Capacity (ml)
0.2-250
Store Data
50 sets
Total Working Temperature
1-999 minutes
Temp. Alarm Range
0-100ºC
Instrument Protection Function
Over-temperature
Duty Ratio
0.1-99.9%
Display
Touchscreen Display
Power Requirements
230 V, ± 20%, 50-60Hz
Dimension (LxWxH)
600 x 300 x 500mm
Weight Approx.
30 kg
The Aczet Ultrasonic Probe Sonicator is designed for cell disruption, homogenization, emulsification, and nanoparticle dispersion using high-frequency ultrasonic waves (20-25 kHz). It is widely used in biotechnology, pharmaceuticals, chemistry, and nanotechnology for applications like DNA extraction, liposome preparation, and chemical synthesis.
The sonicator automatically adjusts its frequency (20-25 kHz) to maintain optimal cavitation efficiency, even when processing samples with varying viscosities or densities. This ensures consistent performance and prevents power fluctuations that could affect results.
Yes, the sonicator offers adjustable power (5W–500W, depending on model) and programmable ultrasonic time (up to 999 minutes). Additionally, the pulse mode (0.1–99.9% duty cycle) minimizes heat generation, making it ideal for heat-sensitive samples.
1.) aczet ultrasonic Temperature monitoring & alarm (0–100°C range) prevents overheating.
2.) Auto-shutoff triggers if the system exceeds safe operating limits.
3.) Overload protection ensures stable power delivery, even with fluctuating loads.
Standard probes include Ø6 mm, with optional sizes from Ø2–Ø12 mm. Selection depends on sample volume:
1.) Small probes (Ø2–Ø3 mm) for micro-volumes (0.2–10 mL).
2.) Larger probes (Ø8–Ø12 mm) for higher capacities (up to 500 mL).
Consult the user manual or Aczet’s technical team for application-specific recommendations.
