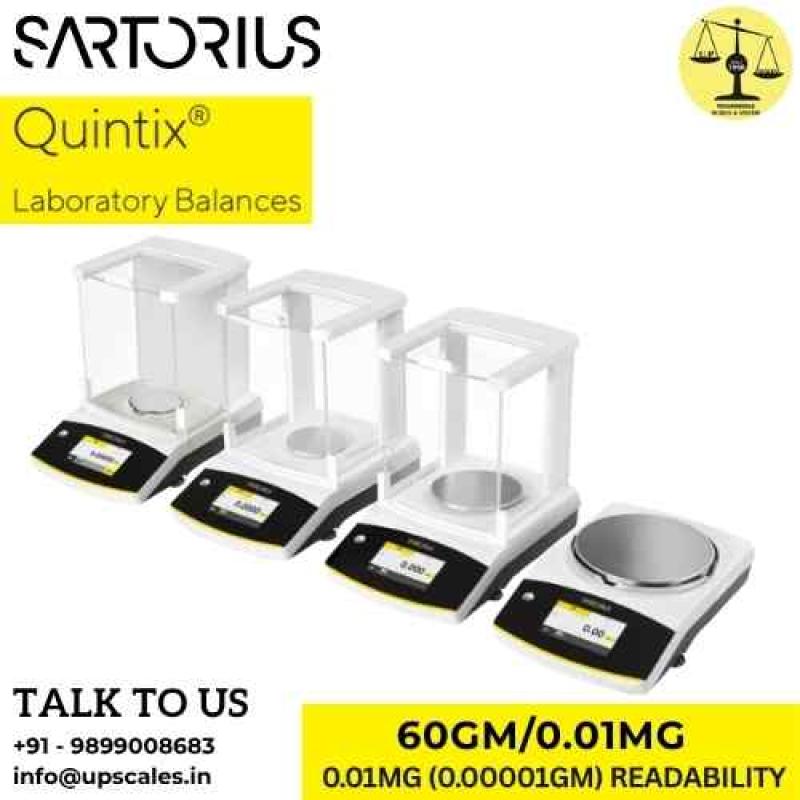

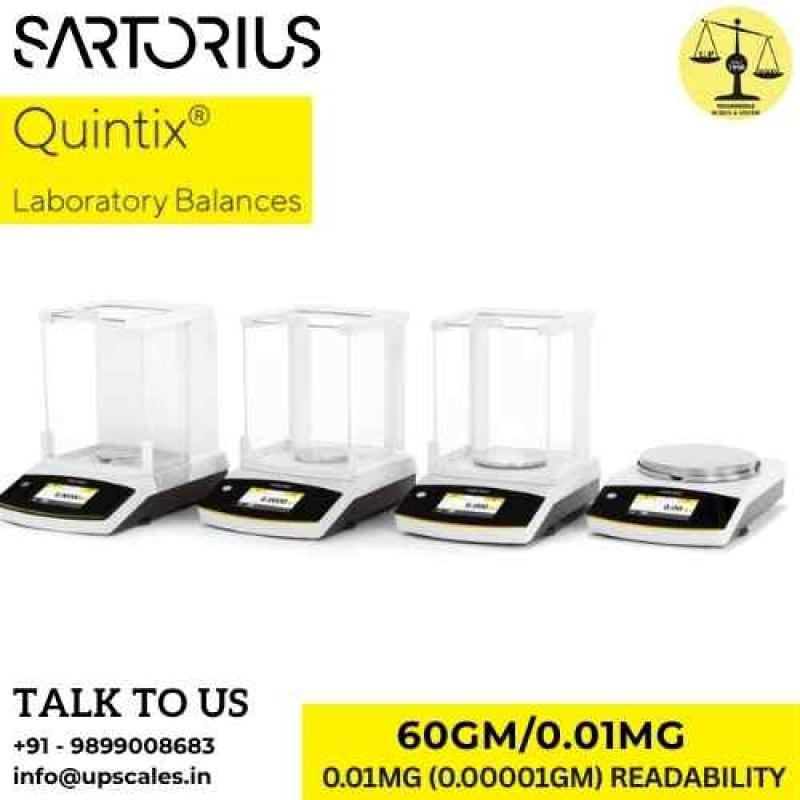

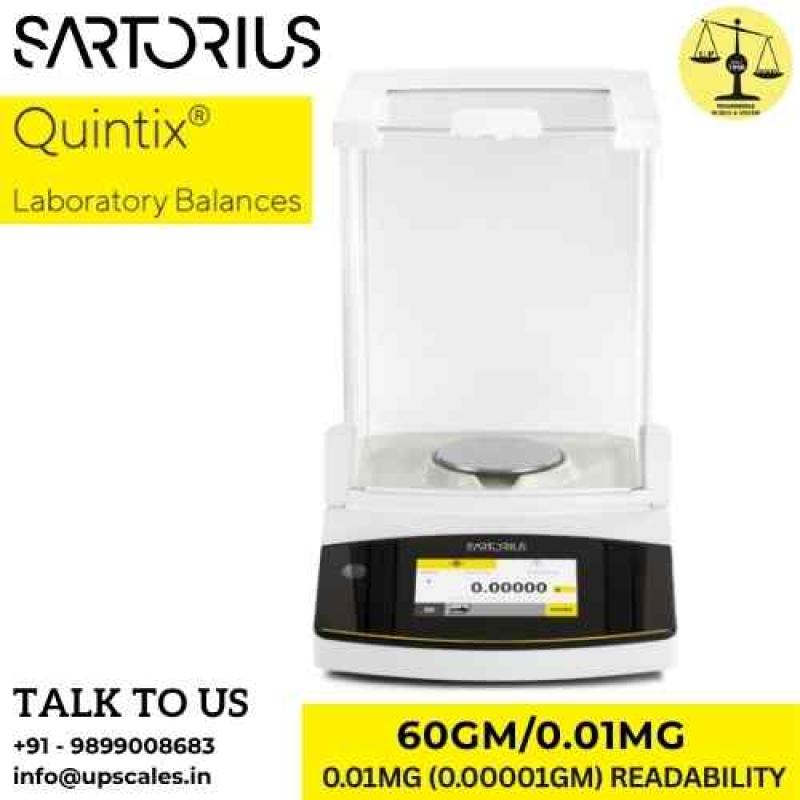

Sartorius Quintix® Semi-Micro Balance: Precision Redefined for Advanced Laboratory Applications
Introduction to Sartorius Quintix® Series
For over 150 years, Sartorius has stood at the forefront of precision weighing technology, with the Quintix® series representing the pinnacle of their semi-micro balance engineering. Designed and manufactured in Germany, the Quintix® Semi-Micro Balance combines cutting-edge technology with ergonomic design to deliver unparalleled measurement accuracy for the most demanding laboratory applications. This instrument sets new benchmarks in precision weighing, offering researchers and quality control professionals an exceptional tool that meets the rigorous demands of modern laboratories.
The Quintix® Semi-Micro Balance is particularly distinguished by its ability to measure with 0.01mg (0.00001gm) readability while maintaining exceptional stability and repeatability. Whether in pharmaceutical research, chemical analysis, or materials science, this balance provides the precision and reliability that professionals trust when measurement accuracy is non-negotiable.
Technical Specifications and Performance Metrics
1.) Precision Engineering for Exact Measurements
The Quintix® Semi-Micro Balance offers an exceptional combination of capacity and readability:
- Capacity: 60 grams | 30 grams (model-specific variations available)
- Readability: 0.01mg (0.00001gm)
- Repeatability: ≤±0.02mg
- Linearity: ≤±0.06mg
- Stabilization Time: As fast as 4 seconds
- Minimum Sample Weight: 0.0082gm (USP Chapter 41 compliant)
These specifications ensure the balance delivers reliable, reproducible results for even the most sensitive measurements, maintaining compliance with international standards for precision weighing.
2.) Advanced Weighing Technologies
At the heart of the Quintix® Semi-Micro Balance lies Sartorius' proprietary monolithic weigh cell technology, which provides:
- Exceptional long-term stability
- Minimal mechanical stress points
- Reduced measurement drift
- Enhanced resistance to environmental fluctuations
The balance also features four user-selectable filter levels, allowing adaptation to various environmental conditions without compromising measurement integrity.
Innovative Features and User Benefits
1.) isoCAL Automatic Internal Calibration
The Quintix® Semi-Micro Balance includes Sartorius' innovative isoCAL system, which provides:
- Fully automatic temperature and time-controlled calibration
- Compliance with strict SOP and GLP requirements
- Self-monitoring to alert users when calibration falls outside normal parameters
- Elimination of manual calibration weights and associated handling errors
This system ensures consistent accuracy while significantly reducing maintenance requirements compared to balances requiring manual calibration.
2.) Intuitive Touchscreen Interface
The balance features a revolutionary user interface:
- Large, high-resolution touchscreen display
- Self-explanatory icons and plain-text prompts
- Context-sensitive guidance for all operations
- Built-in help functionality
- 12-language support for global usability
This intuitive design minimizes training requirements and reduces operator errors, particularly valuable in environments with multiple users or frequent staff rotations.
3.) Intuitive Touchscreen Interface
The balance features a revolutionary user interface:
- Large, high-resolution touchscreen display
- Self-explanatory icons and plain-text prompts
- Context-sensitive guidance for all operations
- Built-in help functionality
- 12-language support for global usability
This intuitive design minimizes training requirements and reduces operator errors, particularly valuable in environments with multiple users or frequent staff rotations.
4.) Ergonomic Draft Shield Design
The Quintix® Semi-Micro Balance incorporates an advanced draft shield system:
- Specially coated glass to reduce electrostatic effects
- Generous working height (240mm on most models)
- Easy-to-open sliding doors for sample access
- Optimal visibility of the weighing chamber
- Reduced air current interference for stable measurements
Applications Across Scientific Disciplines
1.) Pharmaceutical and Life Sciences
- Precise measurement of active pharmaceutical ingredients (APIs)
- Quality control sample preparation
- Formulation development
- Compliance with GMP/GLP requirements
- Dosage verification
2.) Chemical Research and Analysis
- Reagent measurement for sensitive reactions
- Sample preparation for analytical instruments
- Density determination
- Formulation verification
- Material characterization
3.) Materials Science and Engineering
- Nanomaterial weighing
- Coating thickness measurements
- Composite material formulation
- Quality assurance testing
- Research and development applications
4.) Academic and Educational Use
- Student laboratory experiments
- Research project measurements
- Teaching precision measurement techniques
- Cross-disciplinary scientific research
Compliance and Certification
The Quintix® Semi-Micro Balance meets rigorous international standards:
- EMC Compliance: Suitable for use in industrial areas (Class B emissions)
- Safety Standards: IEC 61010-1 for laboratory equipment safety
- Metrological Certification: Available on approved models for regulated environments
- USP Chapter 41 Compliance: Meets pharmaceutical weighing requirements
- IP Protection: IP43 rating for resistance to dust and moisture
Connectivity and Data Management
1.) Comprehensive Interface Options
The Quintix® Semi-Micro Balance offers multiple connectivity solutions:
- USB Interface: For direct connection to computers and printers
- RS-232 Port: Standard serial communication for legacy systems
- PC-Direct Feature: Seamless data transfer to spreadsheet applications
- Printer Compatibility: Support for Sartorius laboratory printers
2.) Data Integrity Features
For regulated environments, the balance provides:
- Audit trail capabilities
- Calibration documentation
- Measurement data logging
- Compliance with ISO and GLP standards
- Password-protected access to critical functions
Maintenance and Calibration
1.) Simplified Maintenance Routine
The Quintix® Semi-Micro Balance requires minimal maintenance:
- Regular cleaning with mild detergent
- Periodic verification of calibration
- Occasional inspection of mechanical components
- Software updates as recommended
The motorized calibration system significantly reduces maintenance requirements compared to balances requiring manual calibration.
2.) Calibration Procedures
While the built-in calibration system handles routine adjustments, users should:
- Perform periodic verification with external weights
- Maintain calibration records for compliance purposes
- Monitor environmental conditions that may affect calibration
- Schedule professional servicing as needed
Why Choose the Sartorius Quintix® Semi-Micro Balance?
1.) Competitive Advantages
- German Engineering: Sartorius' reputation for precision and reliability
- Advanced Calibration: isoCAL system for consistent accuracy
- User-Centric Design: Intuitive touchscreen interface
- Regulatory Compliance: Meets strict industry standards
- Comprehensive Features: Beyond basic weighing capabilities
- Durable Construction: Built for long-term laboratory use
- Future-Ready Connectivity: Compatible with modern laboratory systems
2.) Total Cost of Ownership Considerations
While the initial investment may be higher than some competitors, the Quintix® Semi-Micro Balance offers:
- Reduced calibration costs
- Lower maintenance requirements
- Longer service life
- Minimal downtime
- Compliance with evolving regulations
- Reduced training costs due to intuitive operation
Technical Support and Service
Sartorius provides comprehensive support for the Quintix® Semi-Micro Balance:
- Global service network
- Technical documentation and manuals
- Online resources and troubleshooting guides
- Calibration and maintenance services
- Software updates and upgrades
Conclusion: The Gold Standard in Semi-Micro Weighing
The Sartorius Quintix® Semi-Micro Balance represents the perfect marriage of precision engineering and practical laboratory functionality. With its exceptional 0.001gm readability, robust construction, and comprehensive feature set, it stands as an indispensable tool for laboratories where measurement accuracy is paramount.
For applications requiring the utmost in precision weighing, the Quintix® Semi-Micro Balance delivers performance that professionals can trust, day after day. Its combination of advanced technologies, user-friendly design, and reliable operation makes it an outstanding investment for any laboratory committed to measurement excellence.
In the demanding world of scientific research and quality control, the Sartorius Quintix® Semi-Micro Balance provides the confidence that comes from working with one of the most respected names in laboratory weighing technology. It's not just a balance—it's a precision instrument designed to support your most critical measurements with uncompromising accuracy.
Why Choose UP Scales?
UP Scales is a trusted name in the weighing industry, known for delivering high-quality, reliable, and accurate weighing solutions. Here’s why professionals prefer UP Scales:
- Government Calibration Verification Certificate: Our balances come with a Government Calibration Verification Certificate and stamping by the Legal Metrology Department, ensuring compliance with legal standards.
- 1-Year On-Site Warranty: We offer a 1-year on-site warranty, ensuring prompt technical support and maintenance.
- Same-Day Free Delivery & Installation: Enjoy same-day free delivery and installation services in Delhi NCR, minimizing downtime and getting your operations up and running quickly.
- Expert Customer Support: Our team is always ready to assist you with any queries or technical issues. Call us at 9899008683 for immediate support.
Government Calibration and Free Delivery (Limited Area):
UP Scales offers optional Government Calibration Verification Certificates and NABL Certificates for an additional fee. We also provide free delivery and installation for customers in Noida, Greater Noida, Delhi and Ghaziabad.
Safety First - COVID-19 Compliant Deliveries:
Our delivery and installation engineers strictly adhere to all COVID-19 safety guidelines established by the Indian Health Ministry and the World Health Organization.
Contact UP Scales Today:
For a free quote, brochure, or to discuss your specific weighing needs, contact UP Scales today! We offer a 1-year on-site warranty
Readability | Scale interval (d)
0.01mg (0.00001gm)
Maximum capacity (Max)
30gm
Weighing system
EMC
Repeatability At 5% load, typical value
0.02mg
Repeatability At approx. maximum load, typical value
0.03mg
Linearity deviation Limits
0.1mg
Linearity deviation Typical value
0.06mg
Sensitivity drift between +10 °C and +30 °C
1± ppm/K
Tare maximum capacity (subtractive)
< 100% of maximum capacity
Temperature change
1.5K
Time interval
4h
Optimum minimum initial weighing
0.0082gm
Typical minimum initial weighing
0.04gm
Typical measurement time
≤ 6.0S
Typical stabilization time
≤ 4.0S
External calibrated test weight
20gm
Accuracy class in accordance with OIML R111-1
E2
Weighing pan size
Ø 80mm
Weighing chamber height*
218mm
Net weight, approx.
8.80kg
Gross weight, approx.
10.90kg
Input voltage
12.0 – 15.0 V DC
Power consumption, max
2.0 W (typically), 4.5 W (typically), only for 125D-1×, 65-1× and 35-1×
Protection class according to IEC 60950-1 II
protection class II, in accordance with EN|IEC 60950-1 up to 3000 m above sea level; IP40 as per EN|IEC 60529
Interfaces
mini USB 1.) Automatic recognition of Sartorius printer models YDP30 or YDP40 2.) PC-direct data transfer to Microsoft® Windows programs 3.) Programmable interval for data
Calibration
Internal calibration isoCAL, External calibration
Selectable Weight Units*
Gram, kilogram, carat, pound, ounce, troy ounce, Hong Kong tael, Singapore tael, Taiwan tael, grain, pennyweights, milligram, parts per pound, China tael, mommes, Austrian carat, tola, baht, mesghal and Newton
Display
Touch screen with Sartorius graphical user interface
Built-in Applications
Mixing, Components, Statistics, Conversion
Languages
English, French, German, Hungarian, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese, Japanese, Korean
Protection
1.) Chemical resistant finish of the top housing 2.) Glass parts of the draft shield are coated to reduce electrostatic influences 3.) In-use cover 4.) Dust cover for balances with draft shield
Anti-theft Lock
Kensington lock and lockdown capability for cable or chain
Country of Origin
Germany
max_handling_time
1 Day
min_handling_time
2
pickup_sla
Same Day
Condition
New
The Quintix® Semi-Micro Balance sets itself apart through its combination of German-engineered precision and innovative features rarely found in comparable models. Its standout characteristic is the isoCAL automatic internal calibration system, which eliminates the need for manual calibration weights while maintaining metrological traceability. The balance also features a revolutionary touchscreen interface with context-sensitive guidance, reducing operator errors. Unlike many competitors, it offers four adjustable filter levels to adapt to environmental disturbances without compromising measurement stability. The ergonomic draft shield design with anti-static coating further enhances measurement accuracy, making it ideal for sensitive semi-micro measurements where air currents and electrostatic interference typically cause challenges.
The isoCAL system performs fully automated internal calibration based on either temperature fluctuations (triggering at 1.5°C changes) or time intervals (every 4 hours). This advanced system uses a built-in motorized weight mechanism that replicates the precision of manual calibration without requiring user intervention. While the automatic calibration maintains day-to-day accuracy, Sartorius recommends supplementary external calibration every 3-6 months using certified weights, particularly for regulated environments like pharmaceutical QC labs. The system automatically documents all calibration events with timestamps for compliance purposes, creating a complete audit trail that meets GLP and ISO requirements.
The Quintix® Semi-Micro Balance excels in applications requiring exceptional sensitivity and repeatability at the 0.001g level. In pharmaceutical development, it precisely weighs active pharmaceutical ingredients (APIs) for formulation where minute quantities significantly impact drug efficacy. Materials science researchers benefit from its stability when measuring nanomaterials or thin film coatings. Chemical laboratories use it for preparing ultra-precise reagent concentrations for sensitive reactions. Its specialized animal weighing mode provides reliable measurements for biological research with small specimens. The balance also outperforms standard models in density determination of small samples and quality control of micro-components in manufacturing.
Yes, the Quintix® offers multiple connectivity options for seamless LIMS integration. Its bidirectional RS-232 interface supports direct communication with most laboratory data systems, while the USB port enables plug-and-play connection to computers for automatic data transfer to spreadsheets. The balance is compatible with Sartorius' suite of laboratory printers, which can generate GMP-compliant printouts with full metadata. For advanced integration, the PC-Direct feature allows real-time data streaming to Windows applications. The system supports multiple data protocols (SBI, xBPI) and can be configured for automated interval-based data output, making it ideal for paperless laboratories requiring complete measurement traceability.
The Quintix® operates optimally within 10-30°C ambient temperature and 15-80% relative humidity (non-condensing), though it maintains functionality from 5-45°C. Its advanced weighing cell design incorporates four user-selectable digital filters to compensate for vibrations and air currents - from "Fast" mode for stable conditions to "Very Stable" for challenging environments. The draft shield's electrostatic coating minimizes interference from charged samples, while the solid-metal weighing pan reduces temperature-related drift. For unstable conditions, the balance features a specialized weighing mode that intelligently compensates for minor disturbances. Placement on a vibration-damped weighing table (available as an accessory) further enhances performance in high-traffic laboratories. The system continuously monitors environmental factors and alerts users when conditions approach operational limits.
