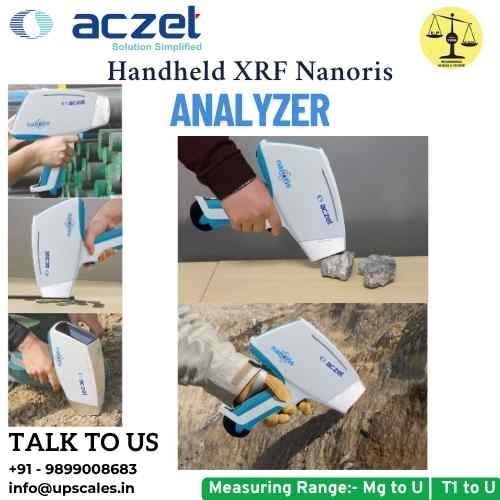

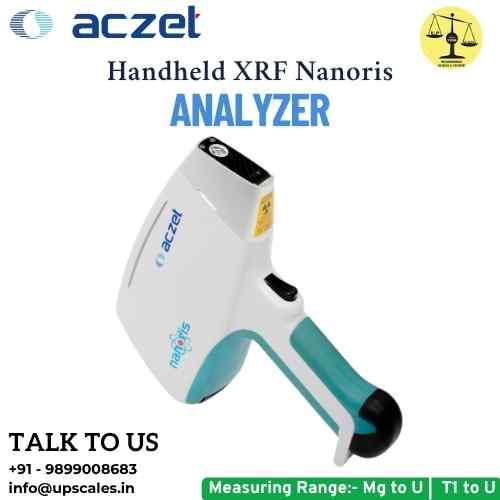

Aczet Handheld XRF Analyzer – Nanoris Series
Unmatched Performance for On-Site Material Testing
The Aczet Nanoris Handheld XRF Analyzer revolutionizes elemental analysis with its cutting-edge Si-PIN and SDD detector technology. Designed for professionals who demand laboratory-grade accuracy in field conditions, this lightweight (1.6kg) analyzer delivers instant, non-destructive results for alloys, precious metals, and industrial materials.
Key Advantages:
- Military-Grade Durability: IP54-rated waterproof/dustproof casing with shockproof protection
- Industry-Leading Detection: Measures elements from Magnesium (Mg) to Uranium (U)
- Ultra-Fast Analysis: Get reliable results in 2-3 seconds with patented digital signal processing
- All-Weather Operation: -20°C to 50°C working range with sunlight-readable 4.3" resistive touchscreen
Technical Specifications
| Feature | Nanoris Si-PIN | Nanoris SDD |
|---|---|---|
| Detector | High-resolution Si-PIN | Ultra-high resolution SDD |
| Measurement Range | Mg to U | Ti to U |
| X-ray Tube | 50kV/200μA (Ag target) | Optional Au/W/Rh targets |
| Battery Life | 8+ hours continuous use | Hot-swappable batteries |
| Data Output | Excel/PDF with custom branding | Cloud synchronization |
| Calibration | Pre-loaded for 500+ alloy grades | User-calibratable |
Advanced Safety Features:
- Automatic beam shut-off when not in contact with samples
- Dual radiation sensors with real-time monitoring
- TÜV/CE certified for complete operator safety
Industry-Specific Applications
1.) Precious Metals & Jewelry
- Verify gold karat (10K-24K) and platinum purity in seconds
- Detect counterfeit alloys with 0.1% accuracy
- Analyze rhodium plating thickness (0.05-50μm)
2.) Scrap Metal Recycling
- Instant alloy identification (3000+ grades)
- Positive Material Identification (PMI) for hazardous elements
- On-the-spot pricing calculations
3.) Manufacturing QA/QC
- Incoming raw material verification
- Coating thickness measurement
- Weld metal analysis
4.) Mining & Exploration
- Real-time ore grade analysis
- Mineral mapping in the field
- Environmental compliance testing
Why Professionals Choose Aczet Nanoris
- German Optical Path Technology - Patented ultra-short optical path enhances light element detection (Mg-Al-Si) by 40% compared to conventional XRF
- Smart Battery System - MSBUS-powered with:
- 8-hour continuous operation
- Air transport certification
- Real-time power monitoring
3. Custom Reporting Software - Includes:
- 32GB onboard storage
- Bluetooth/WiFi connectivity
- Custom PDF templates with company branding
- LIMS integration capabilities
4. Global Compliance - Meets:
- ASTM E2926, ISO 3497
- RoHS/REACH directives
- FDA 21 CFR Part 1020.40
Complete Package Includes
- Main analyzer unit with detector of choice
- 2x Lithium-ion batteries (8hrs each)
- Military-grade waterproof case
- Calibration check coupons
- USB/Bluetooth docking station
- 3-year detector warranty
- Lifetime software updates
"The Nanoris SDD model reduced our material inspection time by 75% while improving accuracy. It pays for itself in weeks."
Quality Manager, Aerospace Component Manufacturer
Excitation source
50KV/200mA maximum pipe flow can be adjusted freely. Ag target (standard), Au, W, Rh target (optional).
Detection Range
All elements between Mg and U. (Almost all elements related to precious metals.)
Display
4.3" Industrial Resistive touch screen. Superb operating system software with sound waves. Automatically adjusts display brightness according to the environment brightness.
Data Processing
32 GB memory. USB, Bluetooth, WiFi or liked to the Internet Data can be exported via EXCEL or PDF. User can customize the reports by adding their company logos etc.
Heat
Equipped with a dedicated T-shape radiator to dissolution the heat, no need to wait for cooling of detector once again.
Safety
Built-in double beam technology can automatically sense whether there is a sample at the measurement window to avoid any damage.
Power Supply
Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery.
Dimensions
254x79x280 mm (L x W x H)
Weight
1.6 kg (with battery).
The Nanoris SDD model detects gold, platinum, and rhodium plating with ±0.1% accuracy down to 0.05μm thickness. It analyzes karat purity (10K–24K) in 2 seconds using ASTM E2926-compliant calibration. The Si-PIN variant achieves ±0.3% accuracy for rapid scrap sorting.
Yes. Patented ultra-short optical path technology enables precise detection of light elements (Mg, Al, Si) – critical for aerospace alloys and automotive materials. The SDD detector improves light-element sensitivity by 40% versus standard XRF guns.
Absolutely. Built-in double-beam sensors automatically shut off X-rays if no sample is detected. It’s IP54-rated (dust/water resistant), operates from -20°C to 50°C, and exceeds IEC 61010 radiation safety standards. Real-time dose monitoring ensures operator safety.
Factory calibrations remain stable for 12+ months. The included Cal Check coupons let you verify accuracy daily in <30 seconds. For custom alloys (e.g., specialized steel grades), user recalibration takes <5 minutes via the touchscreen interface.
A single charge delivers 8+ hours of continuous scanning. Two hot-swappable batteries are included – replace them mid-shift without powering down. The MSBUS system monitors charge levels and complies with IATA air transport regulations.
