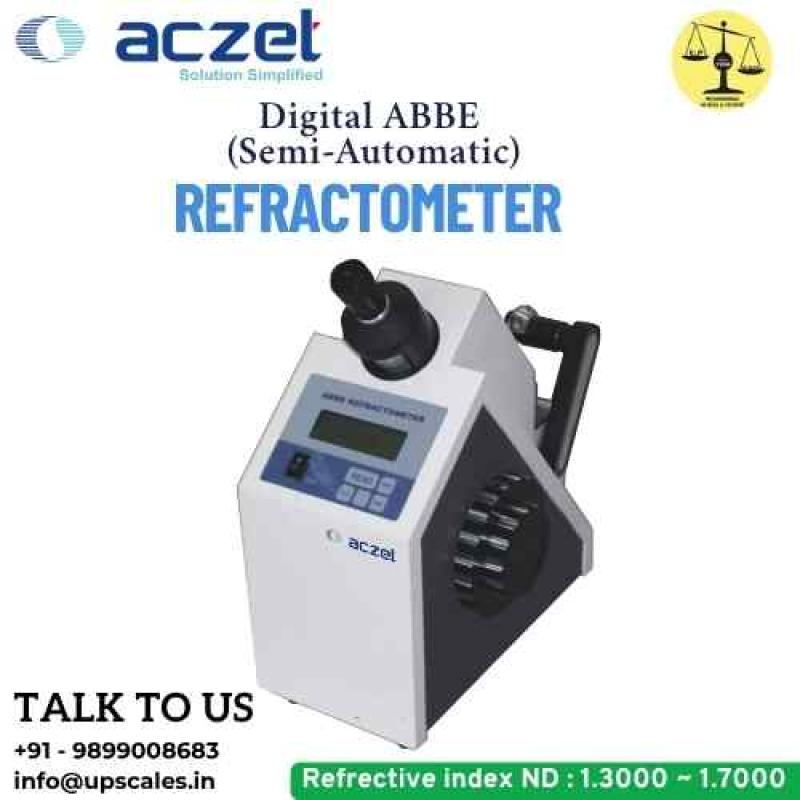

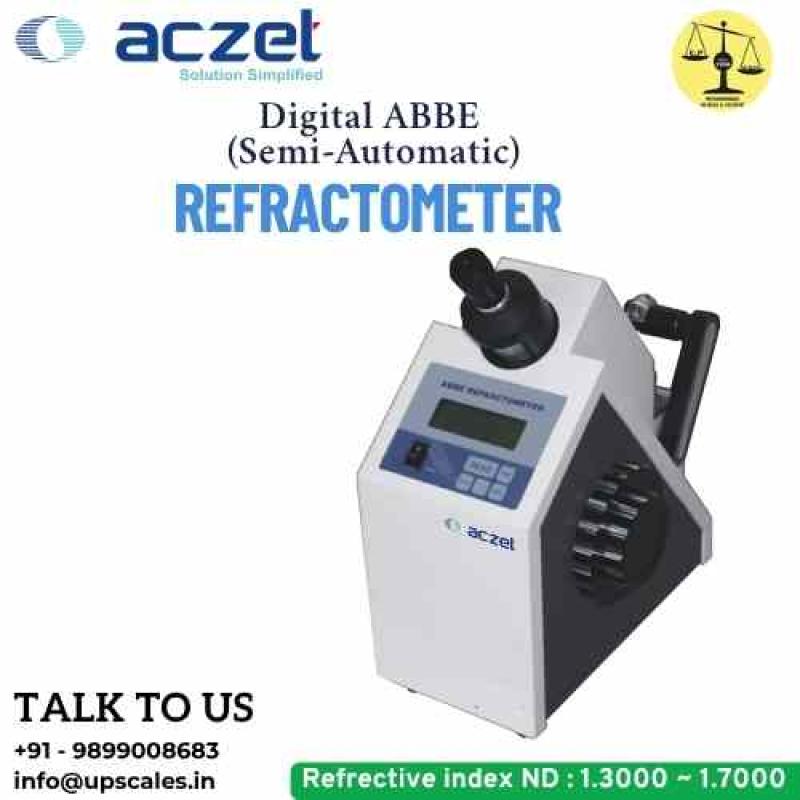

Aczet Digital ABBE Refractometer (ARM-2S) – Semi-Automatic Precision for Demanding Laboratory Applications
Bridging Optical Precision with Digital Convenience
For laboratories that refuse to compromise between traditional optical accuracy and modern digital efficiency, the Aczet ARM-2S Digital ABBE Refractometer delivers the perfect synergy. This semi-automatic workhorse combines German optical heritage with Japanese sensor technology, offering pharmaceutical labs, petroleum refineries, and food quality centers a robust solution for refractive index (nD) and Brix analysis with unparalleled repeatability.
Engineered for Critical Measurements
1.) Dual-Measurement Excellence
| Parameter | Specification | Industry Impact |
|---|---|---|
| Refractive Index | 1.3000–1.7000 nD (±0.0002) | Essential for oil purity verification |
| Brix Range | 0–95% (±0.1%) | Critical in sugar concentration control |
| Temp Compensation | 15–45°C (0.1°C resolution) | Ensures accuracy in tropical environments |
2.) Semi-Automatic Operation
- Optical Alignment: Manual fine-tuning via dispersion-corrected telescope
- Digital Readout: Instant LCD display of nD/Brix/temperature
- One-Touch Calibration: Auto-zero with NIST-traceable standards
3.) Industrial-Grade Durability
- Hard Glass Prism: Resists scratches from abrasive samples
- Stabilized Light Source: Consistent illumination (6.3V/0.25A halogen)
- All-Metal Housing: Withstands daily lab abuse
Technical Specifications
| Feature | ARM-2S Specification |
|---|---|
| Measurement Time | <15 seconds (including temp stabilization) |
| Sample Volume | 0.2ml (liquid), 2mm² (solid) |
| Data Output | RS-232 for LIMS integration |
| Power | 230V AC (±20%), 50-60Hz |
| Dimensions | 337×240×270mm (Bench-saving design) |
| Weight | 12 kg (Vibration-resistant base) |
Industry-Specific Workflows
1.) Petroleum & Lubricants
- Base oil purity verification (nD 1.460–1.500)
- Additive concentration checks in engine oils
2.) Pharmaceutical Formulation
- Syrup density validation for pediatric medicines
- Propylene glycol/water ratios in topical solutions
3.) Food & Beverage QC
- HFCS 42/55/90 differentiation
- Final molasses grading (88–95°Brix)
4.) Paint & Coatings
- Resin refractive index control
- Solvent purity analysis
Why Professionals Choose Aczet ARM-2S
- Hybrid Operation: Retains optical verification while adding digital precision
- Future-Ready: Upgradeable to full automation with ARM-3A module
- 5-Year Prism Warranty: Against manufacturing defects
- Local Support: Calibration services in 18 Indian cities
Quality Validation Protocol
Each unit undergoes:
- Prism flatness testing (λ/4 interferometry)
- 300-cycle measurement repeatability test
- Voltage fluctuation simulation (180–250V)
Includes:
- NABL-traceable calibration certificate
- GMP validation documentation
- Multilingual manual (EN/HI/FR)
Requires manual sample placement but offers superior optical verification – ideal for method development labs.
Yes – Adjustable light intensity compensates for opacity.
Monthly prism cleaning + annual lamp replacement (included in AMC).
Yes – Includes USB converter with 21 CFR Part 11 compliant software.
Yes – Salinity, Urine SG scales available via firmware update.
