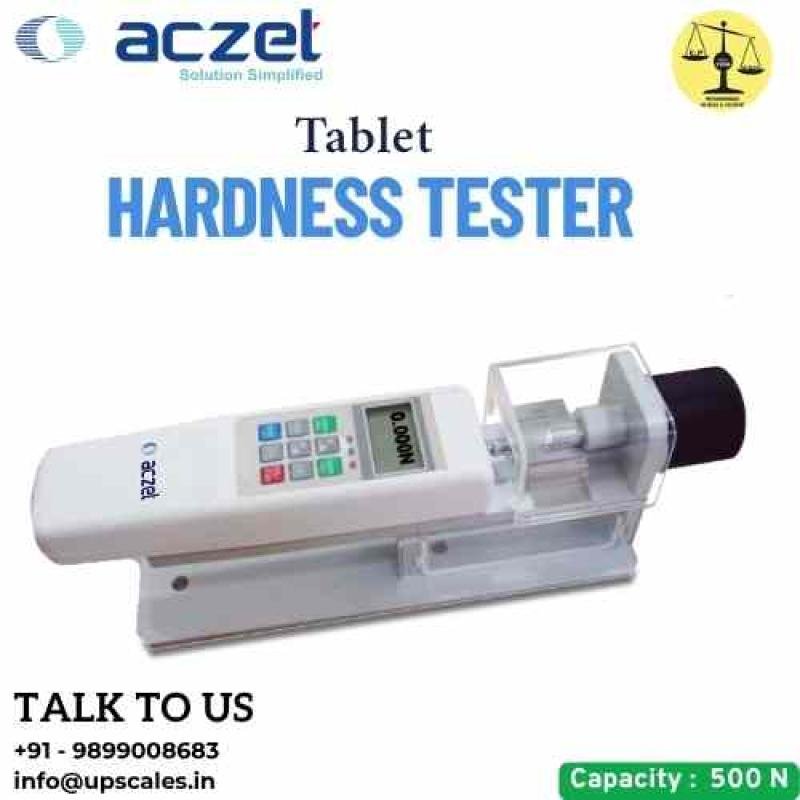

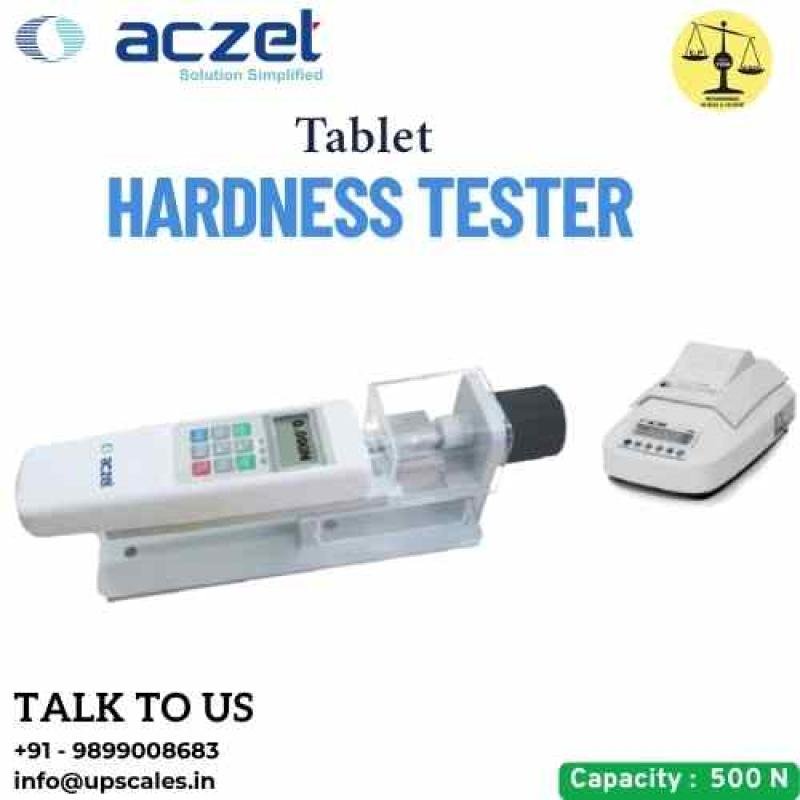

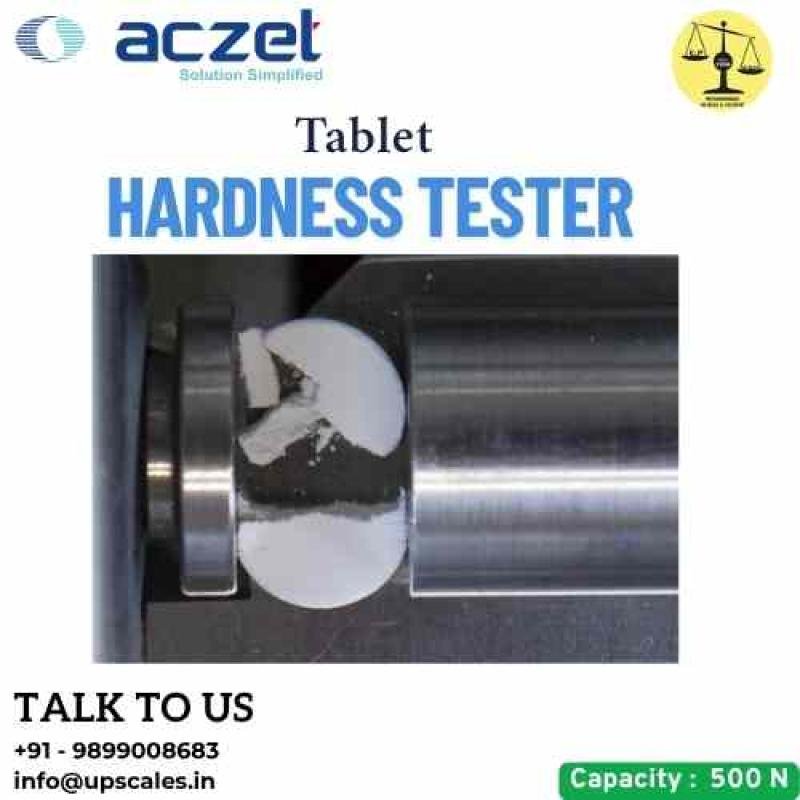

Aczet Tablet Hardness Tester (ATH 500) – Precision Pharmaceutical Testing for Optimal Tablet Quality
The Gold Standard in Tablet Hardness Measurement
In pharmaceutical manufacturing, tablet hardness directly impacts dissolution rates, packaging integrity, and patient compliance. The Aczet ATH 500 Tablet Hardness Tester delivers laboratory-grade precision in a compact, portable design, ensuring your tablets meet USP/EP/IP standards for hardness and structural integrity.
Key Features & Benefits
1.) Unmatched Accuracy & Reliability
- 500N Capacity – Tests standard to extra-hard tablets
- ±0.5% Accuracy – Exceeds pharmacopeial requirements
- 0.1N Resolution – Detects minor batch variations
2.) Versatile Tablet Compatibility
- Diameter Range: 2–28mm (covers all common tablet sizes)
- Multiple Units: Switch between Newton (N), Kilogram-Force (KGF), and Pound-Force (Lbf)
3.) Smart Operation & Data Management
- LCD Backlit Display: Clear readings in low-light conditions
- Peak Force Capture: Auto-records maximum breaking force
- RS-232 Interface: Export data to LIMS/Excel
4.) Portable & Durable Design
- 1.5kg Lightweight: Carry between production lines
- Rechargeable Battery: 1200mAh Ni-MH (8+ hours continuous use)
- Industrial-Grade Load Cell: 50,000+ test lifespan
Technical Specifications
| Parameter | ATH 500 Specification |
|---|---|
| Measurement Range | 0–500N (0–51KGF) |
| Tablet Thickness | Up to 15mm |
| Power | 230V AC or battery operation |
| Data Storage | Holds last 50 tests |
| Dimensions | 245×66×36mm (Fits in lab coat pocket) |
Why Pharmaceutical Professionals Choose Aczet
- USP <1217> Compliant – Validated for cGMP environments
- 3-Year Load Cell Warranty – Industry's best protection
- One-Touch Calibration – With NIST-traceable weights
- Local Support – Service technicians in 12 Indian states
Applications Across Industries
1.) Pharmaceutical Manufacturing
- Core tablet hardness before coating
- Brittle fracture index calculations
2.) Nutraceuticals
- Chewable tablet integrity testing
- Vitamin compaction quality checks
3.) Academic Research
- Formulation development studies
- Excipient compatibility testing
Quality Assurance Protocol
Each tester undergoes:
- 500-cycle endurance test
- 3-point accuracy verification (100N, 300N, 500N)
- Drop-test certification (1m height)
Includes:
- GMP validation templates
- Multilingual quick guide (EN/HI)
- Hardness conversion charts
| Model | ATH 500 |
| Resolution | 0.1 N |
| Capacity | 500 N |
| Tablet Range | 2 to 28 mm |
| Accuracy | ± 0.5% of F.S.D. |
| Battery | 1200 mAH, 8.4V, Ni-Hi Rechargeable Battery |
| Sensor Type | Load Cell |
| Units | N(Newton), KGF (Kilogram Force) and Lbf (Low bound Force) |
| Measurements | Peak Force Measurement |
| Display | LCD Screen Display with Backlit |
| RS 232C Interface | yes |
| Power Requirements | 230 Vac, ± 20%, 50-60Hz |
| Dimension (LxWxH) mm | 245 x 66 x 36 mm |
| Weight approx. | 1.5 Kg |
5x faster with eliminated operator bias – auto-captures peak force
No – Designed for compressed tablets only (capsule tester available separately)
Monthly for GMP use with included 200N test weight
Yes – Standard 8.4V Ni-MH pack (₹1,200)
Yes – RS-232 supports most lab printers
